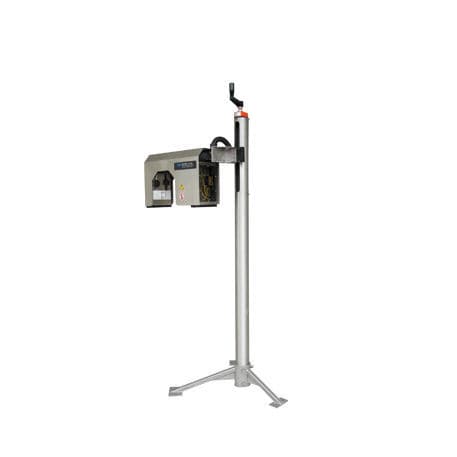

The TapTone Fill_ir sensor is designed to inspect plastic and glass containers for proper fill level. They system can be configured to detect under filled containers, or over filled containers or both. The system uses optical technology to detect an infrared beam, which mreaures the fill level of water based liquid products. The sensor mounts on a remote variable height stand and requires no modifications to the existing production conveyor. The Fill_ir is compatible with any TapTone user interface and can be added to existing TapTone systems as an optional inspection.

Fill_ir requires a User Interface for operation and is compatible with the T550 and PRO Series User Interfaces.​

Fill_ir Features
• Detects overfill and/ or underfill inspection on one sensor
• Low cost fill level inspection at production line speeds
• Cantilever design requires no line modifications
• No tools required for change-overs
• Simple height adjustment​
• Meets CE requirements

Specifications
Operating Speed (max) : 2,000 containers per minute
Maximum Container Width : 170mm (6.75 in)
Power Requirements : Voltage: 10-30 VDC (Typical 24 VDC); Current: 340mA maximum
Operating Conditions : Stable Ambient Temperature: 0 degrees - 50 degrees C (32 - 122 degrees F)
Weight : 9.95 kg (22lbs)
Trigger Sensor : 10-30 VDC, PNP Sourcing Output
Measurement Resolution : 1-4 mm (0.040 in to 0.160 in)
Sensor Output : 24V PNP Sourcing
Environmental Rating : NEMA 4X, IP67
Construction : Box: 304 electro polished, stainless steal housing, high pressure wash-down
Mounting : Angled pedestal stand, 304 stainless steel, tripod base, adjustable height range 241 mm (9.5 in)

Parameter Name	Parameter Value
Technology	optical infrared
Sector	industrial
Other characteristics	measurement
