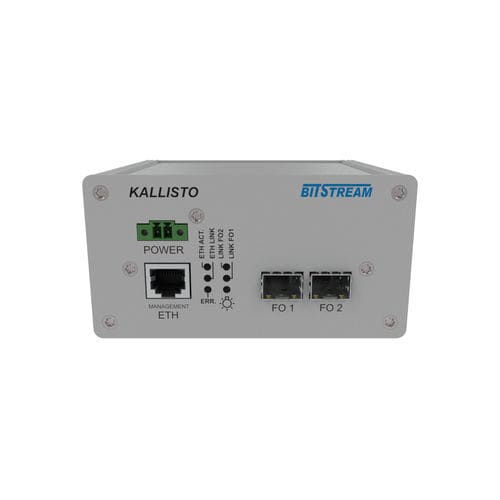

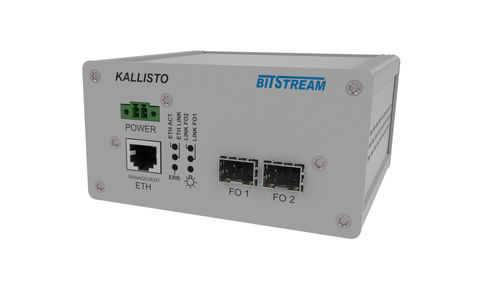

Converter for optical and electrical interfaces to be installed in two sockets dedicated to SFP modules. A wide range of interfaces (optical, electrical) provided by the manufacturer, as well as SFP transceivers owned by the user, can be installed in the device.

Properties and Benefits

Conversion of interfaces between installed SFP modules compliant with the "SFP Multi Source Agreement"
Amplitude regeneration and optional clock for the converted signal
A wide range of supported speeds and types from 155Mbit / s to 3.125Gbit / s *; SDH, Gigabit Ethernet, ATM
Full range of supplied SFP interfaces, i.e. electrical (SDH STM-1, Gigabit Ethernet), 1310nm, 1550nm, WDM, CWDM
Signaling of the port status and device status by LED diodes
Ethernet management: WWW, SNMP
Optional version with extended operating temperature: -40° to +75°C
Power supply 12-60V DC

Parameter Name	Parameter Value
Type	optical-electrical gigabit interface wavelength
Bus	gigabit Ethernet, fiber optic
Applications	for fiber optic networks

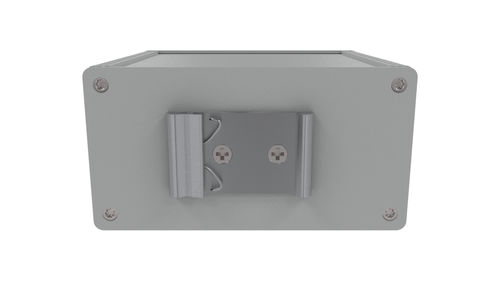

Other characteristics	DIN rail single-mode single mode-multimode
