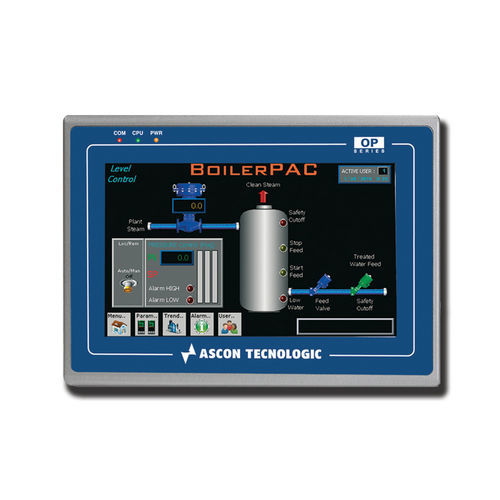

Operator panel with 4.3″ color graphic display and Ethernet

Programmable with “Easy Builder Pro” software (optional)

FUNCTION -
Operator panel

DIMENSIONS -
L x H x D 128 x 102 x 32 mm

DISPLAY -
TFT 4.3" LED backlitted

POWER SUPPLY -
24 Vdc

COLOURS -
16 M

RESOLUTION -
480 x 272 pixel

BRIGHTNESS (CD/M²) -
500

MEMORY -
128 MB FLASH, 128 MB RAM

RTC -
Yes

USB -
Host

ETHERNET -
Yes

COMMUNICATION PORTS -
COM1 RS 232/RS 485 2 and 4 wires COM3 RS 485 2 wires

CERTIFICATIONS -
CE, UL

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	panel-mount
Resolution	480 x 272
Other characteristics	TFT LCD programmable USB Ethernet RS232 IP65
