Operator terminal with touch screen MiniConsole™

Operator terminal with touch screen MiniConsole™

Operator terminal with touch screen MiniConsole™

About


Mini-Consoles
The Mini-Console is ideal for any process area. The ergonomic angle between the keyboard and display resemble a laptop but in an industrial package. Choose from swivel, fixed and mobile mounting options. NEMA Type 4 and 12 units are made from powder coated carbon steel and Type 4X units are fabricated from either 304 or 316L Stainless Steel. Strongarm offers complete integration services for all Operator Interface Mountings, including customer supplied component integration, electrical wiring or customer specified components procured and wired by Strongarm.

Operator friendly compact interface solution, ideal for process control areas.

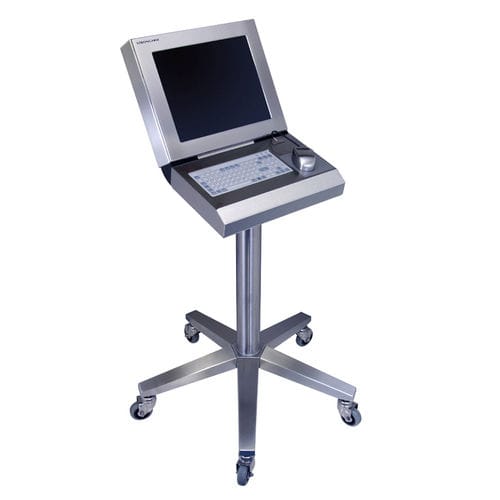

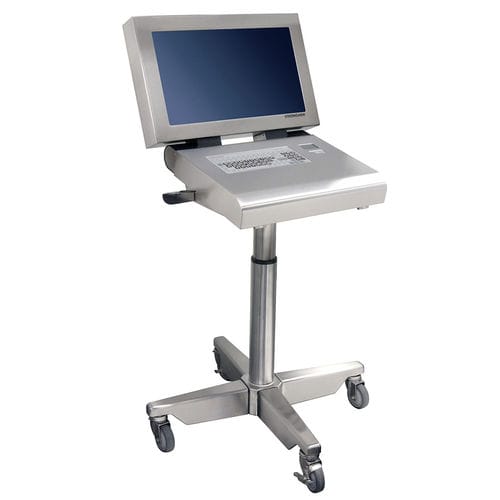

Mobile and Telescoping post options are available.
Display sizes range from 15” to 24” and are available with or without touchscreens
NEMA Type 4/12 (Powder Coated Steel) or Type 4X (304/316L Stainless)
IP64, IP65 & IP66 configurations available
Touch screen options to meet any environmental requirements.
Variety of different pointer options are available including Strongarm’s patented Stainless Steel Mouse
Mechanical Keyswitch Keyboard with super durable polyester overlay
Enclosures are fabricated from 14 gauge carbon (4/12) or stainless steel (4X)
Subpanel below the keyboard mounting terminal blocks, Micro PC’s or KVM extenders
Intrinsically Safe Non-Incendive options are also available for Class I Division 2 areas
UL 508A Listed (File No E225791)



PARAMETERS

Parameter Name Parameter Value
Interface
with touch screen
Mounting
floor-standing
Other characteristics
  • color LCD
  • compact
Screen size (mm)
12 - 24
