KVM system SERIES 600 Device platform MANTA
Highlights - KVM Operator Station, 24" display, Full HD 1920 x 1080
Zone 1, 2, 21, 22 and Division 2
Optional resistive glass or foil touch screen
Data transmission via CAT7 copper cable up to 150 m

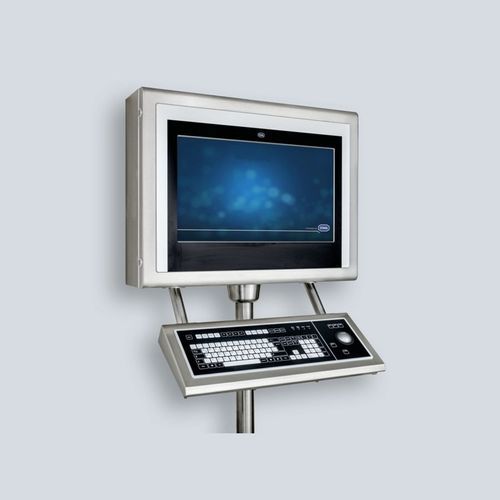

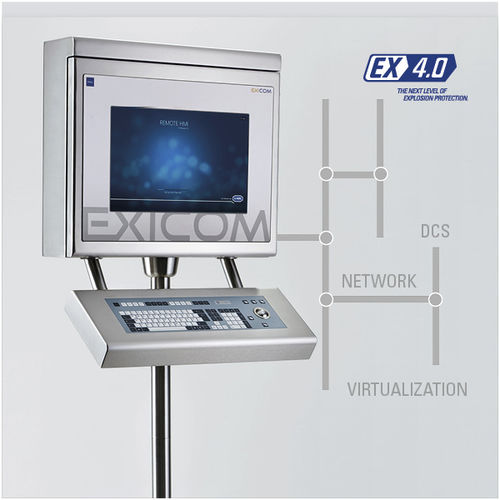

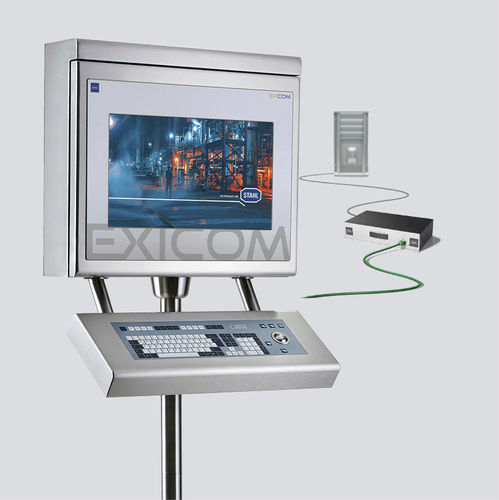

Functional Description - The OS ET-677-DVI3-CAT operator stations with MANTA device platform are explosion-protected KVM systems for Zones 1, 2, 21, 22 and Division 2. Their brilliant 24" widescreen displays with a resolution of 1920 x 1080 pixels (format 16:9), and are available with or without touch screen. The stainless steel enclosures (SS304 or SS316L) are available with a front opening in cleanroom-compliant design and with different mounting options. Configuration options include country-specific keyboards, pointer instruments, RFID readers and barcode readers. Data is transmitted via CAT7 copper cable up to 150 m
Series - MANTA KVM Operator Stations
Product description - 24" KVM system
Technology - Remote HMI KVM
HMI type - Operator station

EXPLOSION PROTECTION
Application range (zones) - 1, 2, 21, 22
Application range (divisions) - Class I, Division 2
Scope - Australia (RCM), Canada (CEC), China (CCC / CNEx), EU (CE / ATEX), India (PESO), International (IECEx), Korea (KCS), Russia (EAC), USA (NEC)
IECEx certification - IECEx BVS 11.0075X
ATEX certification - BVS 11 ATEX E 102 X
NEC certification - 70011698
CEC certification - 70011698
CNEX certification - CNEx21.1938X
KCS certification - 12-GA4BO-0617X

Parameter Name	Parameter Value
Interface	with touch screen, with keyboard with touch screen with keyboard
Mounting	arm-mounted
Other characteristics	Bluetooth Ethernet/IP rugged dust-proof waterproof ATEX
Applications	monitoring for the pharmaceutical industry RFID for clean rooms for explosive areas
