The GF_VEDO line of operator terminals offers a compact and economic system for machine control.
Machine cycle control [IEC1131 based SoftPLC] and graphic page display [SCADA] are integrated in a single product.
This integration provides a variety of quick and economical automation solutions.
Thanks to the use of DOM (DiskOnchip) solid state mass memory, the GF_VEDO HL series is completely DiskLess and FanLess, and is very compact.
The result is an extremely sturdy and reliable product that can be installed (IP65 front panel protection level) in extremely severe work environments.

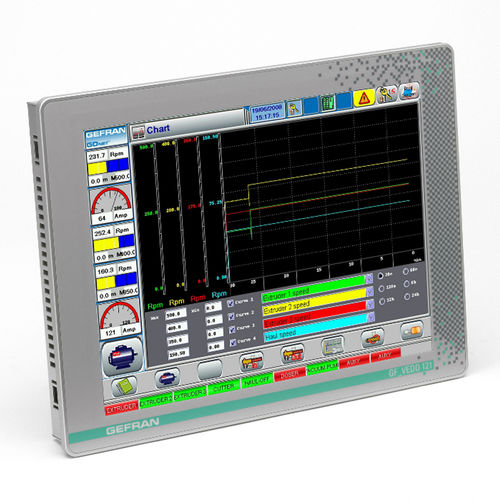

GF_VEDO HL 121CT is offered with a 15” TFT active matrix display, with resolution of 800x600 pixel (SVGA).
Intel“ Celeron“ M (ULV) 600MHz and Intel“ Celeron“ M 1.5GHz processors are used.
Available RAM (SO-DIMM DDR) varies from a minimum of 128MB to a maximum of 1GB, depending on the operating system selected.
Available mass memory (DOM) varies from a minimum of 128MB to a maximum of 4GB, depending on the operating system selected.

A wide range of communication peripherals are available:
- 2xEthernet 10/100 Base-T
- 2xUSB 2.0 (Host)
-1x RS485 optoisolated
- PS/2 Mouse and Keyboard
- 1 x Fieldbus [optional] (CAN Layer 2)
-1 x COM RS232 [optional]
-1 x COM RS485/RS422/RS232 [optional]

The product can be ordered with different operating systems already installed, such as:
- VxWorks
- Windows XP Embedded

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	panel-mount embedded
Resolution	800 x 600
Processor	Intel® Celeron®
Other characteristics	TFT LCD compact RS232 IP65
Applications	display
