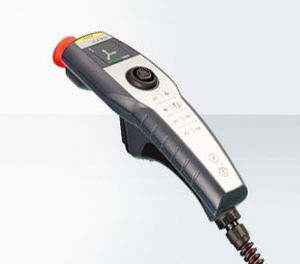

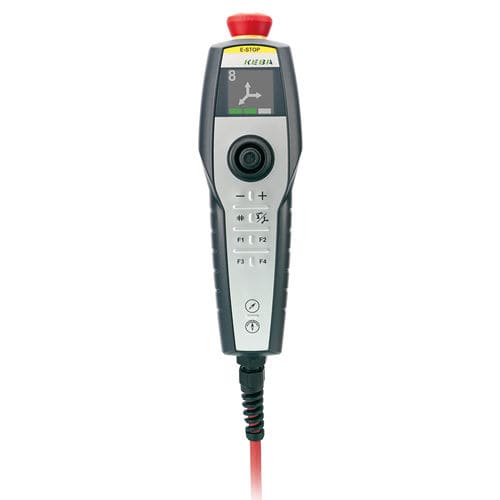

The KeTop T10 directMove enables intuitive teach-in in a new and revolutionary way. Robot paths are jogged easily by simple gestures. Complex abstraction and complicated thought processes in coordinate systems can be omitted.

It is easier and more efficient – both for experienced operators as well as for new users. The time required and the associated costs are minimized considerably, and operational errors are reduced effectively.

-20 % save of time at teach-in
-Intuitive operation
-Robot programming knowledge is not required
-Safe retraction from critical situations

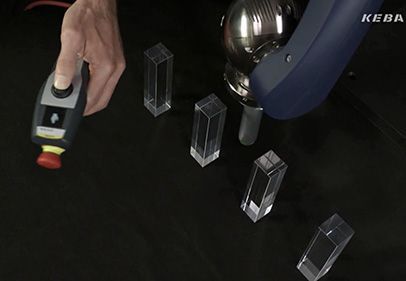

Show the robot the way

Using the inertial sensors of the 6D Inertial Measurement Unit (6D IMU), the KeTop T10 directMove detects its position and direction in the three-dimensional space. The operator can therefore easily specify the required movement or rotation by indicating in the direction of motion and then operating a small joystick – regardless of his/her position relative to the robot.

Maximum operational safety

The KeTop T10 guarantees maximum safety for man and machine. Emergency stop and 3-stage enabling switches guarantee the same high safety standard as with classic handheld pendants.

In addition, special safety functions that can be executed at each controller prevent the robot from following fast, unintended movements of the KeTop T10 directMove. Excessively fast moved robot joints are locked.

Parameter Name	Parameter Value
Interface	with keyboard
Mounting	mobile handheld
Other characteristics	TFT LCD LED backlight
Applications	for robots
