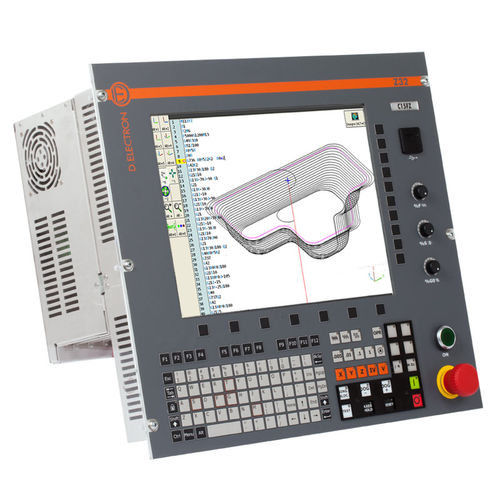

CNC Z32 C15 FlorenZ
Compact video operator’s terminal, including CNC, alphanumeric keyboard, machine operating panel:

Includes alphanumeric keyboard and a simplified machine operating panel
Functional keys near to the screen
Connected with the electrical cabinet through a single Ethernet cable
FlorenZ operating system
24 optoisolated Inputs and 8 outputs 0.5A 24Vdc available for console buttons and lamps


CNC characteristics:

Milling and turning functionality
Special functions for plasma cutting and laser cutting
G-code part-program
Up to 10 interpolating axes programmable in a single block
Reading speed up to 11000 blocks/sec (G1/G2/G3 blocks from internal memory)
Huge dimensions part-programs executed in DNC from hard-disk
Dynamic look-ahead, more than 500 blocks
Sophisticaded jerk control limits the mechanical stress
High-speed machining and super-finishing for moulds
Canned cycles and macros
Full support for rotary heads and tables (5 axes RTCP for blades, blisks, moulds,...)
Gantry axes
Multiprocess: max 6 simultaneous and independent processes
Up to 32 digital axes and 16 analog axes

Parameter Name	Parameter Value
Interface	with keyboard
Mounting	panel-mount
Other characteristics	compact programmable Ethernet
Applications	control machine CNC
