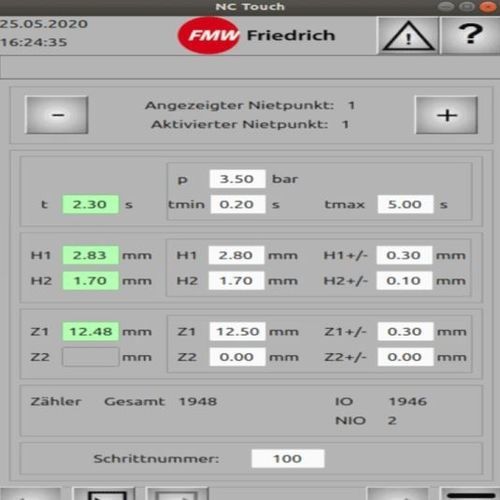

5"-Multitouch-Display mounted in front of cabinet or separate operator panel
visualization of riveting faults shown in the display
simultaneous visualisation of actual and target process values
failure acknowledgement via key switch (automatic/set-up) mounted in operator panel
two measuring axes with position sensing system for length- (Z-axis) and projection measuring system (H-axis) available
selectable switch-off criteria (H2 or Z2)
process control: automatic aligning of riveting tool and variable measuring pressure
time frame to control riveting material
teach-in function or direct input for process parameters
up to 63 different riveting points parameterizable
Expansion of storage capacity from 63 to 255 different riveting programs
quantity counter (accepted parts counter) per riveting program
operating hours counter
German/English language switchable
USB interface (save and load of riveting programs, software upgrades/ updates)
measuring and joining function possible
Adjustable rotation speed (rpm) of riveting motor for each riveting point
Expansion of switch-off criteria for riveting process to delta Z and/or delta H and time
Data transmission via Ethernet interface for quality data

two-hand control
pedal switch
proximity switch, e.g. when slides are used
primary control, e.g. PLC with binary coded selection of the riveting points

manual or automatic slide with riveting point selection, e.g. 2 successive riveting operations
control of index cylinders and/or lifting stations
a faulty rivet can be retained (pinched); rejected parts can only be removed if separately acknowledged as such

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	panel-mount
Other characteristics	Ethernet USB
Applications	display control data PLC visualization
