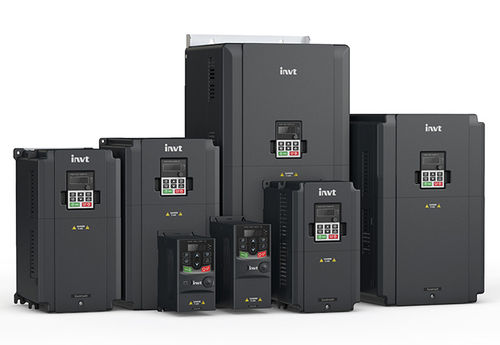

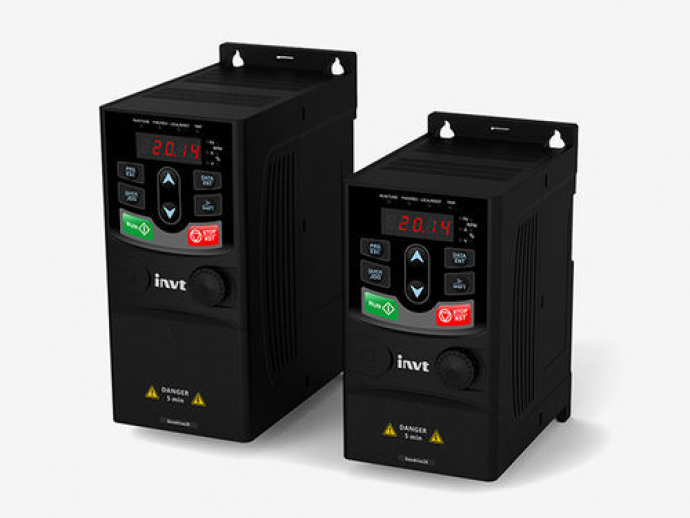

GD20 series inverters feature excellent drive and control performance for using of sensorless vector control technology, and improve usability and reliability for the enriched hardware configurations and software functions, meeting different industrial applications. GD20 series 18.5KW~110KW comes standard with built-in DC reactor, 18.5~37KW built-in standard brake unit, 45~110KW optional built-in brake unit, full range of independent air duct design, which improves product reliability and performance, and enhances product competitiveness.

● Excellent Control Performance
Adopting PG-free vector control mode, excellent control performance

Excellent vector control performance
Excellent motor drive performance
Excellent high-frequency running performance

● Optimized Structure Design
Optimized spare utilization, models (≥18.5kW) is much smaller than existing inverters

Parameter Name	Parameter Value
Type	vector control digital display single-phase

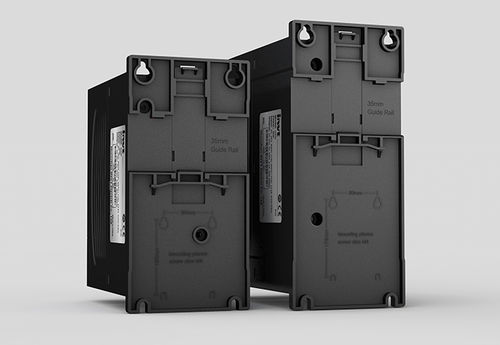

Mounting	DIN rail wall-mount
Applications	for industrial applications for asynchronous motors
Protection class	IP20
Other characteristics	open-loop air-cooled vector-controlled
Power (W)	400 - 110000
Intensity (A)	2.5 - 215
Output frequency	Max.: 400 HzMin.: 0 Hz
