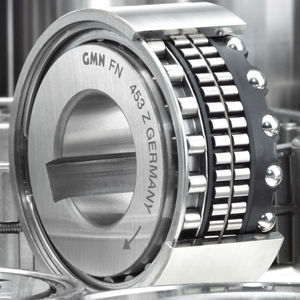

GMN complete freewheel clutch units are particularly suited for high torque requirements. The FPD, FND, RA, FP and FN series are characterized by an integrated ball bearing and an additional roller bearing (fixed and floating bearing) and are also optionally available pre-lubricated with sealing rings. All GMN complete freewheel clutch units can be used as indexing clutches, backstops or as overrunning clutches.
The freewheel clutches in the FND series are complete freewheel clutch units sealed on both sides with a keyway connection at the inner ring and a press fit connection on the outer ring.
Characteristics
Width: 34 mm
Operating temperature: max. 100 °C
Lubrication: operative lifetime oil lubrication
Components
Insert element*
FE 400 M (meander spring) / FE 400 Z (tension spring)
Raceways
Bearing steel, hardened and ground
Inner ring
Keyway per DIN 6885, Sheet 1, Tolerance: P9 with back clearance
Outer ring
Press fit
Ball bearing
integrated
Roller bearing
RL 400
Lubrication
Lifetime oil lubrication
Seal
GMN rubber seal
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
roller
|
| Construction |
with internal bearings
|
| Applications |
|
| Torque (Nm) |
176 - 588
|
| Diameter (mm) |
15 - 45
|
| Rotational speed (rpm) |
1000 - 1700
|
