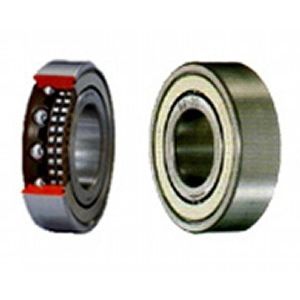

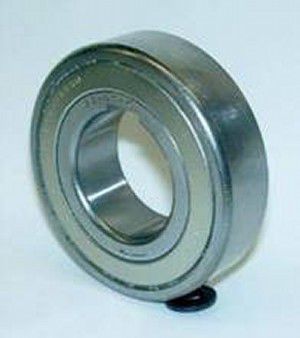

Bearing (6200s) with a built-in cam clutch
Bearing (6200s) with a built-in cam clutch. Depending on the operating atmosphere an oil seal type is also available.
Can be used widely from low speed to high speed, and is suitable for small and light load applications.
Features
・Compact Design
BB Series functions both as an one-way clutch and a bearing within its compact body, allowing you to use your space more effectively.
・Easy mounting
You can choose two ways of mounting to shafts and housings, either press fit or key connection
・Increased Torque Capacity
Capable of transmitting larger torque than shell type roller clutches by arranging the number of cams between the inner and outer races.
・All models are always in stock for immediate delivery.
Depending on the operating conditions the BB Series is also available with an oil seal.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
|
| Construction |
with internal bearings
|
| Applications |
|
| Torque (Nm) |
29 - 260
|
| Diameter (mm) |
15 - 40
|
| Rotational speed (rpm) |
900 - 3600
|
