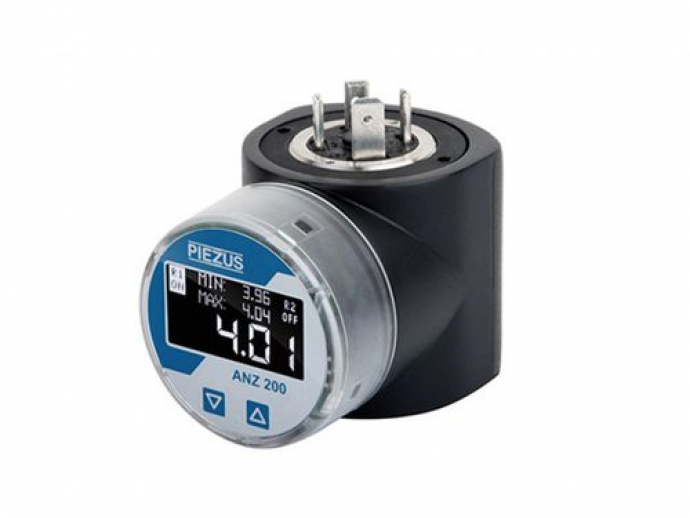

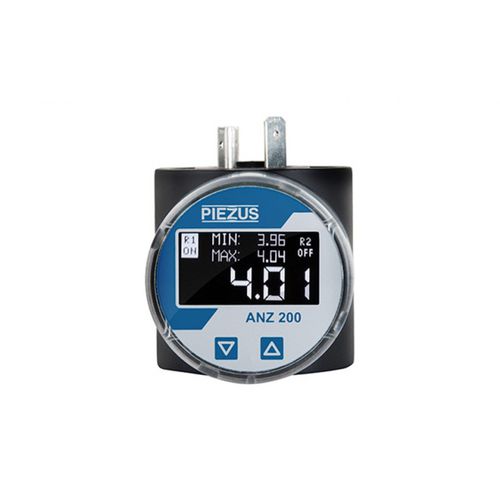

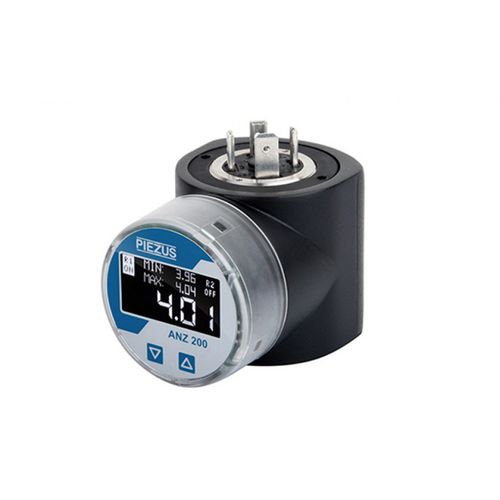

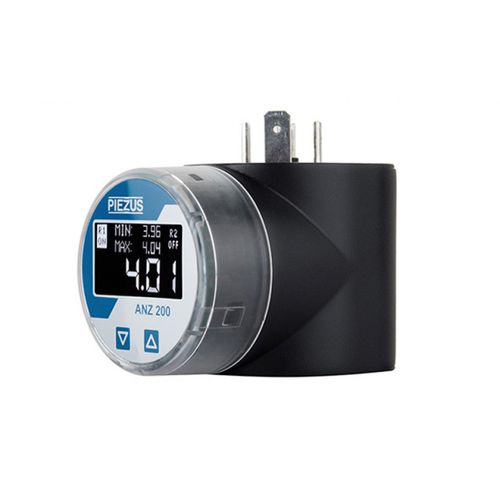

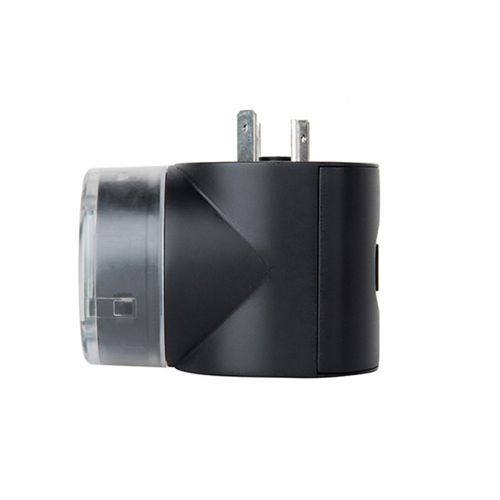

Plug-in display for transmitters with 4-20 mA output

FEATURES
Display: graphics OLED, 330° rotatable in 2 axis
Range: -1999...+9999
Features: min/max values, selectable units and decimal point, archive chart, averaging
Ingress protection: IP65
Optional: PNP (high side) switch output

DESCRIPTION
ANZ 200 is a plug-in display compatible with any transmitter equipped with an industry standard DIN 43650A connector powered from the 4-20 mA loop. Graphics bright OLED display features measurement reading scaled according to user’s preferences and units, as well as provides access to archive charts for the last hour, day, month and quarter. ANZ 200 is a versatile instrument that is very easy to install, as it just plugs in between the transmitter and it’s connector and does not require any power supply, and easy to use due to it’s intutive on-screen menu. Optionally, it can be equipped with a PNP (high-side) switch output with configurable set points, and trigger modes.

APPLICATIONS
Local measurement reading
Control and alarm switching
Peak values monitoring
Laboratory equipment
Test rigs

Parameter Name	Parameter Value
Type	graphic OLED
Format	compact, high-definition, 3-digit
Applications	industrial control information for sensors current measurement for pressure measurement transducer current loop
Other characteristics	electronic programmable backlit IP65
