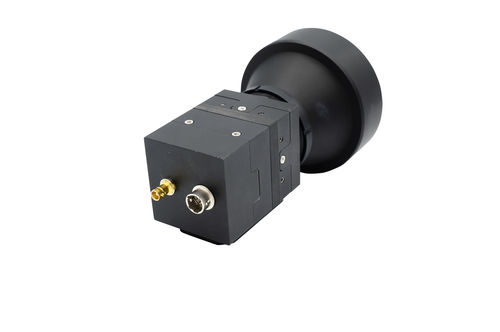

Based on Bertin’s FusionSight and PeriSight optronic technologies, CamSight is a family of lightweight, compact core cameras for complex optronic systems. Reliable, responsive and easy-to-use, the CamSight modules are available in three versions - Low Power; Low SWaP; High-Definition.
Designed for vehicle manufacturers and integrators, they can be adapted to any observation and surveillance system (UAS, UGS) or autonomous vehicles (UAV, UGV), covering a wide range of applications: intelligence, driver vision enhancement, local situational awareness, perimeter surveillance, intrusion detection, critical site monitoring, etc.

Equipped with LYNRED’s ATTO GEN2 infrared sensor, CamSight® HD provides the best thermal image resolution on the market, allowing for digital zoom. Packed with an unmatched set of features, CamSight® HD allows for real time, freeze-free
image delivery over a wide range of light level conditions.
CamSight® HD OEM camera also exists in a Quick Connect version to meet any mission's
or end user’s requirements. Both versions are available with multiple lens configurations,
adding flexibility to integrators and manufacturers.

Technical characteristics:

• Sensor:
ATTO GEN2 (by LYNRED)
1280 x 1024@12µm pitch

• Bandwidth:
LWIR (8-12µm)

• HFoV (°):
95 / 56 / 46 / 28 / 24 / 17 / 15
(More on demand)

• NETD: < 50mK @ F#1/1.0

• Consumption: < 2.8W

• Video outputs: HD-SDI / GigE Vision

• Time to image: < 3s

• Dimensions:
OEM: 31.5 x 40 x 40mm
Quick Connect: 58.3 x 40 x 40mm

• Weight:
OEM: 83g
Quick Connect: 128g

Parameter Name	Parameter Value
Applications	for robotics for marine applications for airborne applications for military applications
Function	thermal imaging detection monitoring safety
Spectrum	LWIR, IR
Sensor	microbolometer
Interface	GigE Vision
Resolution level	HD
Other characteristics	OEM board lightweight outdoor high-sensitivity performance airborne compact ultra-low SWaP robust uncooled
