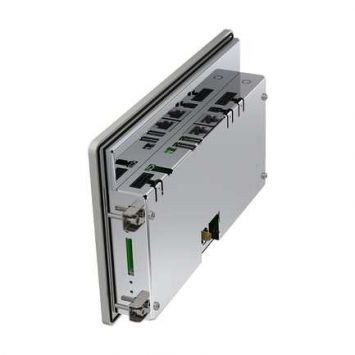

7.0 inch Panel Mount HMI based on NXP i.MX8M Mini processor.

Description
The seven-inch Panel Mount HMI with its robust design can be easily integrated into a product. Equipped with the latest SBC model from by Garz & Fricke, it features the modern i.MX 8M Mini processor generation from NXP. Manufactured in the modern 14 nm FinFET process, this processor offers high performance with low power consumption and low operating temperature - even at extremely high performance requirements. The display features high resolution with 1024x600 pixel and a capacitive touchscreen for advanced user interaction. Multiple connectivity options such as RS232, RS485, CAN multiple USBs as well as 1GB Ethernet and integrated Wifi/BT make the TANARO 7.0 BX PCT a future-proof HMI solution and perfect operating unit. The integrated MIPI-CSI camera interface also offers the option to integrate camera solutions. This also allows applications such as image processing and evaluation to be implemented without any problems.

Parameter Name	Parameter Value
Interface	projected capacitive touchscreen
Mounting	panel-mount
Resolution	1024 x 600
Processor	NXP i.MX8M Mini
Other characteristics	Ethernet RS232 RS422/RS485 WiFi LED backlight robust
Applications	industrial for IoT applications POS multimedia for medical applications
