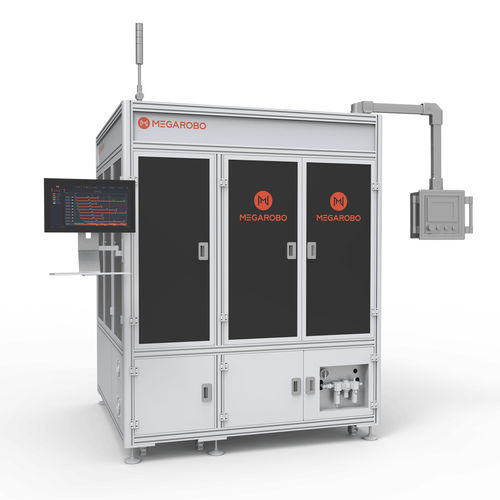

Non-contact inspection system MRD-3A00 series

Non-contact inspection system MRD-3A00 series

Non-contact inspection system MRD-3A00 series

About


Edge inspection equipment MRD-3A00 series for the appearance defect detection of LCD, rigid AMOLED, CG, and other products.

Burr Check AOI Product Description:

Leading in the industry, reaching the technical level of its counterpart made in South Korea and Japan; Satisfying the appearance detection of LCD, rigid AMOLED, CG, Glass Sensor, and other products in different sizes after cutting and edging.
Covering the detection items as follows: chipping, chipped corners, flanges, cracks, line scratches, surface scratches, ITO peeling, etc

Burr Check AOI Key Points:

1. Accuracy: In terms of non-contact detection, the accuracy of other product is 2um but our product is 1.2um, and our software system can accurately locate the cutting position.
2. Stability: In terms of the walking straightness of the workbench, other product is less than 2um linear deviation in 300mm stroke (not promised), but our product is less than 1.5um linear deviation in 480mm stroke, and we clearly promise that deviation could be less than 2um linear in 305mm stroke. Our fuselage adopts China's unique Taishan blue marble structure and special heat treatment technology for aging treatment, which is not easy to deform.
3. Compatibility of the machine to the product: our equipment can cut 8-inch and 12-inch wafers at the same time, but other equipment need to cut the 8-inch and 12-inch wafers separately, which increases the user's replacement cost and waiting time. Our parts are highly versatile and easier to maintain.



PARAMETERS

Parameter Name Parameter Value
Technology
non-contact
Operational mode
automated
Applications
  • for the electronics industry
  • for the glass industry
Type
surface
