The Control Module is a self-contained functional unit for pressure-controlled fluid injection in the GIT process, and can be adapted to all injection molding machines, independent of the type and manufacturer.

After receipt of the start signal from the injection molding machine, the fluid injection is implemented. The pressure control is realized exactly by means of hydraulically-operated, 3/3-way proportional valves from Maximator. As a result, both switchover markings and melt standstills are effectively avoided.

Thanks to the intelligent software, production parameters can be flexibly adapted to individual requirements. With this, rising as well as falling ramps can be freely adjusted with up to 10 individual pressure levels. This guarantees perfect interior surface quality in the gas chanel.

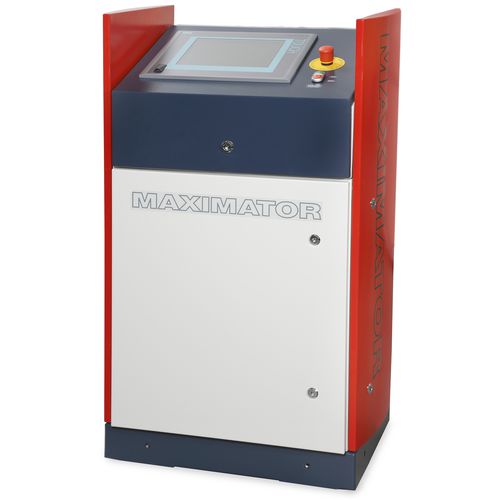

The RM/500/2(4)/N2 Control Module is designed for the exact injection of nitrogen in gas assisted molding processes. Depending on the design, the Control Module is equipped either with 2 or 4 highly-dynamic, Maximator 3/3-way proportional valves for the pressure control, and can optionally supply up to two injection molding machines.

Very high reproducibility
Self-contained functional unit
Available with two or four 3/3-way proportional pressure-control valves
Graphic representation of curve progressions
Pressure/Time profile freely programmable
Compatible with all injection molding machines
EUROMAP 62 interface

Parameter Name	Parameter Value
Options	nitrogen for compressors CO2
