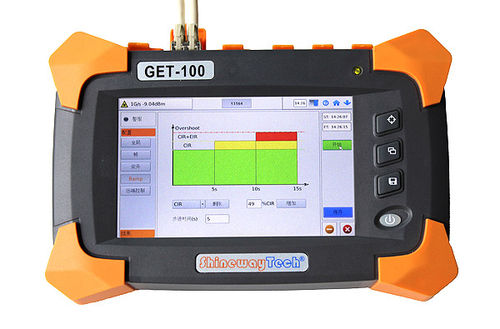

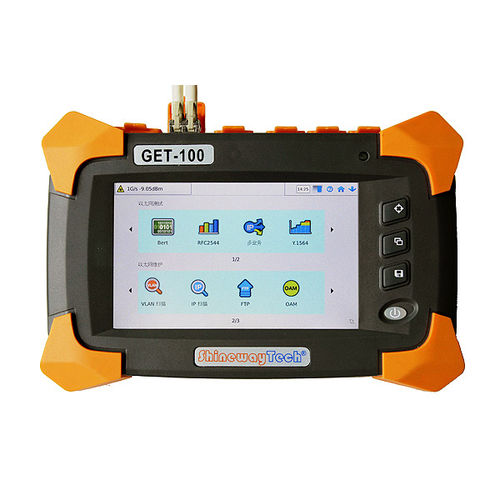

GET-100 Gigabit Ethernet Tester
GET-100 is a handheld 10M/100M/1000M gigabit Ethernet tester, used for the Ethernet installation, operation and maintenance services.
The GET-100 design in a small and portable device which provides packet capture, network monitoring, network performance testing, data generation, test leads and error test functions in an organic whole unit. It is widely used in network layer 1/2/3 BER test and RFC - 2544 test. GET-100 help maintenance staff quickly locate fault and analyze the network

Features

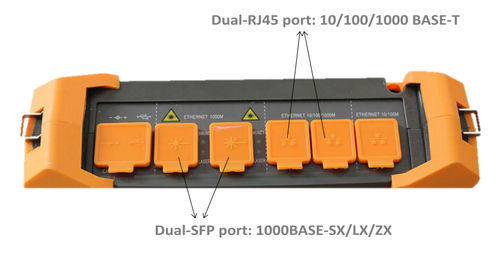

● Electrical port and optical ports with rate at 10/100/1000Mbps
● Smart and durable, field application ready
● 5-inch LCD color touch screen, smart navigation menu
● Results can be shown graphically and numerically
● RFC2544 auto test, quickly find the fault
● Full Y.1564 test
● LED indicator light, on-screen display and ICON
● Large capacity memory to save settings and test results
● Embedded software to easy upgrade

Functions
● L1/L2/L3 BER Test
● Integrated RFC2544 benchmark test ： throughput, packet loss, latency, back-to-back
● Multi- stream traffic generation (10 traffic stream)
● Receiving end flow filter analysis
● VLAN test
● Connectivity test: PING, TRACE ROUTE,IP scan
● Through, terminal mode test and frame length, frame type, and utilization stat.
● Optical power test, optical module temperature, working current, voltage test
● Cable VCT: Identifying short circuit, open circuit, cable length fault location
● Service disruption time test
● Intelligent loop back test
● Jitter Test
● OAM and TCP testing
● USB data interface, driver-free

Parameter Name	Parameter Value
Domain	network
Test type	Ethernet network
Tested product	installation
Configuration	portable, handheld
Other characteristics	digital with LCD screen with touchscreen smart
