Can manage up to 800 alarm points

Integration with the main VMS on the market : Genetec, Seetec,Milestone, etc

Remote Maintenance : time-stamped records, real-time visualisation of detectors, configuration settings accessibles via web server

136 alarm relays : 8 relays + upto 8 relays x 16 extension cards

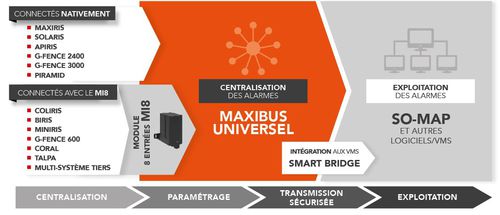

The MAXIBUS allows you to centralize the alarm contacts of different SORHEA products in 1 single point, thanks to their networking. It has maintenance and remote programming functions.

Power supply - Power supply 12 Vdc
Consumption without alarm - Consumption without alarm 230mA without relay extension card (1,5 A with136 relays max.)
Connection - Connection Ethernet RJ45, 10/100 Base-T
Field BUS - Field BUS 4 RS485 outputs under the MODBUS protocol
Alarm outputs - Alarm outputs From 8 to136 output relays with the addition of a 8-relay extension card
Housing dimensions (mm) - Housing dimensions (mm) 253 x 313 x 115
Working temperature - From 0° C to +55° C

Extension card - 8 relays, up to 16 cards
MODULE Connect - Connects the intrusion detectors to the MAXIBUS UNIVERSEL concentrator via a secured dynamic
