About

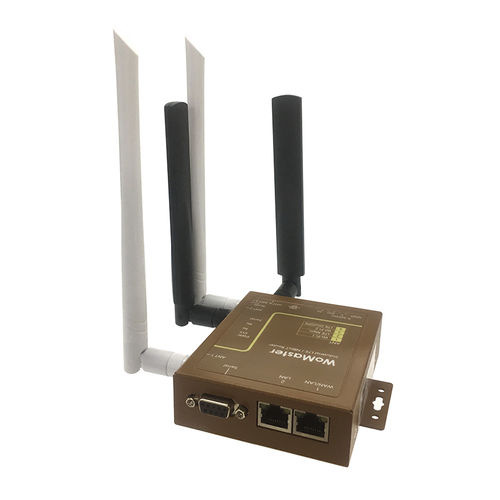

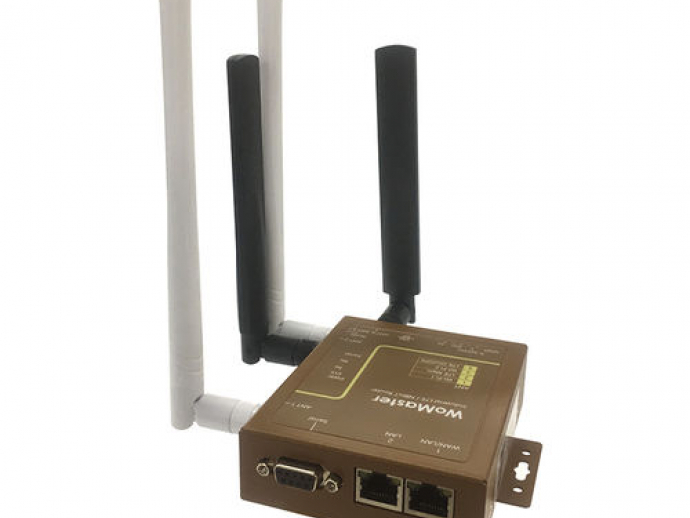

The IoT router WR222-WLAN+LTE/NB1 brings serial and wireless LAN data to the cellular network. It supports LTE/NBIoT to wireless LAN redundancy and LTE/WLAN auto offload to optimize network performance. The RS232/422/485 port connects to meters, sensors, or Modbus RTU devices to send data to the remote cloud center over the cellular or WLAN network by Modbus TCP or Secured MQTT (MQTTS). The WR212-WLAN is a smart wireless LAN router for serial devices. To safeguard cybersecurity, security features such as Firewall, OpenVPN, GRE tunnel are supported. The embedded MQTTS and RESTful API enables instant public cloud integration such as AWS or Azure. The private cloud platform ThingsMaster and ThingsMaster OTA can also be set up for an instant and secured access to receive data or manage devices remotely.
Dual Radio 4G/LTE/NBIoT + Wi-Fi Wireless Network
・LTE Cat.4, 2T2R MIMO provides 150M downlink and 50M uplink
・4G/3G/2G full cellular network compatibility
LTE-E:
FDD B1/3/5/7/8/20 (2100/1800/850/2600/900/800MHz)
TDD B38/40/41 (2600/2300/2500MHz)
LTE-CN:
FDD B1/3/5/8 (2100/1800/850/900MHz)
TDD:B38/39/40/41 (2600/1900/2300/2500MHz)
・IEEE 802.11b/g/n for 2.4G 2T2R MIMO delivers up to
300Mbps throughput
・Support NBIoT + M1
LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/
B26/B28
LTE TDD: B39 (For Cat M1 Only)
Serial Communication & High Throughput Data Switching
・RS232/422/485 full functions for serial over LTE/NBIoT/WiFi/Ethernet data switching
・2 port Ethernet supports routing and bridging mode
・Modbus RTU to Modbus TCP Conversion
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Network |
|
| Other characteristics |
|
