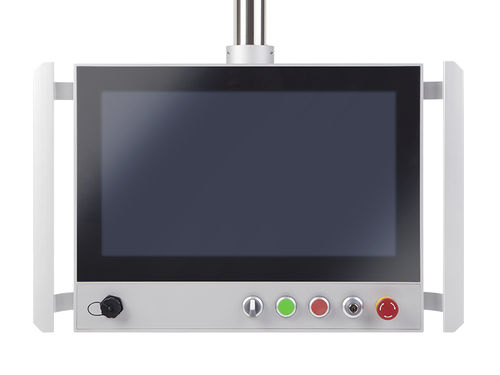

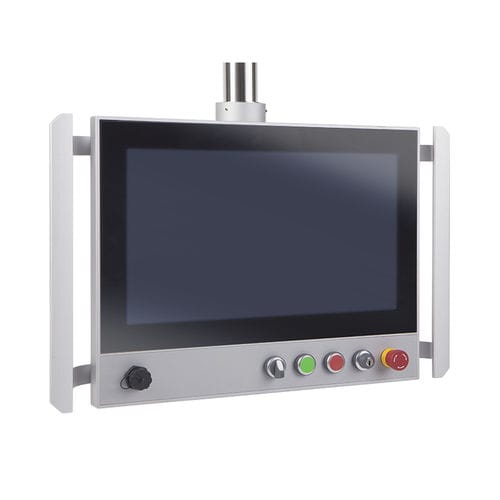

Multitouch screen operating panel IDP59215

Multitouch screen operating panel IDP59215

Multitouch screen operating panel IDP59215

About


21.5 inch Full HD TFT,The 2nd generation Industrial Operation Panel,with die-casting box

• IP65 dustproof/waterproof
• Capacitive/resistive flat touch sceen
• High quality operation key and indication switch
• Connectors supporting a variety of cantilever profiles
• Simple and efficient site installation and maintenance, the core part can be seen
• Front panel operation key/indication switch are easy to connect with the controller
• Front panel keys can customize LOGo, text, color
• Flexible expansion of USB, host switch, WIFI and custom functions

Input interface
Signal input :Supports VGA+DVI input
Communication interface :USB2.0 input
Physical
Weight :15.30 KG
Pensile Direction :Optional Up or Down
Fixed Stand of Cantilever :Suitable for full series
Handle of Operation Panel :Standard
Keyboard tray :optional
Operation Button :Optional Item, Nodka Standard: USB、Rotatable switch、Push button (Green , Red )、Key switch、Emergency stop switch)
Dimension (W x H x D) :664mm x 411mm x 139.5mm
Power
Input voltage :DC 12-24V support reverse polarity protection, overvoltage protection, overcurrent protection
Maximum Power Dissipation :20W
LCD
LCD Type :21.5" Full HD TFT
Resolution :1920 x 1080
Colors :16.7MB
Active Area (W x H) :476.64mm x 268.11mm(21.5)
Backlight :LED
MTBF (hour) :30000hrs
Pixel Pitch (H x V) :0.248 x 0.248
Luminance :250cd/m2
Contrast Ratio :3000:1
Viewing Angle :(L) 89 / (R) 89 / (T) 89 / (B) 89
Touchscreen
Touchscreen type :Capacitive Touchscreen
Transmittance :> 81%
Response Time (touch pen) :< 5ms
Surface Hardness :Mohs Hardness 7H
Click Life :250g / 100,000,000 times
Multi-touch :10 Points



PARAMETERS

Parameter Name Parameter Value
Interface
multitouch screen
Mounting
  • arm-mounted
  • panel-mount
  • VESA mounting
Resolution
1080 x 1920
Other characteristics
  • fanless
  • TFT LCD
  • USB
  • IP65
  • dust-proof
  • waterproof
Applications
  • industrial
  • control
  • display
  • visualization
  • monitoring
