About

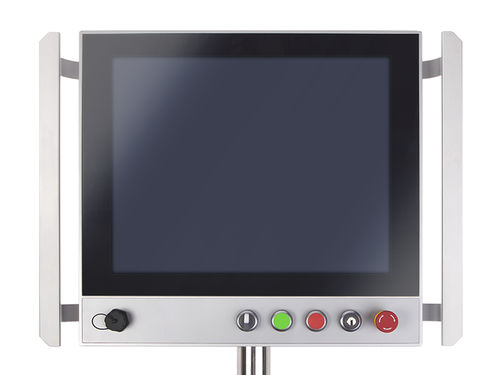

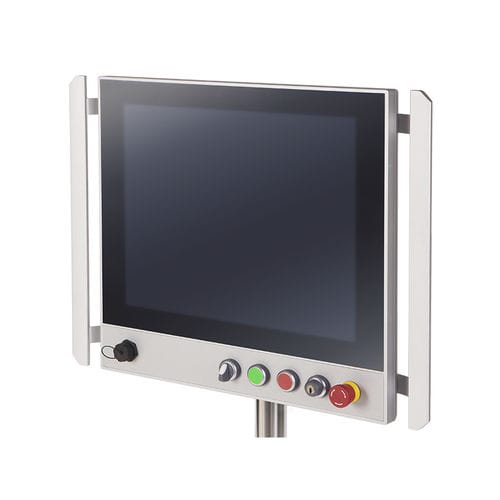

19 inch SXGA TFT，The 2nd generation Industrial Operation Panel,with die-casting box
• IP65 dustproof/waterproof
• Capacitive/resistive flat touch sceen
• High quality operation key and indication switch
• Connectors supporting a variety of cantilever profiles
• Simple and efficient site installation and maintenance, the core part can be seen
• Front panel operation key/indication switch are easy to connect with the controller
• Front panel keys can customize LOGo, text, color
• Flexible expansion of USB, host switch, WIFI and custom functions
Input interface
Signal input :Supports VGA+DVI input
Communication interface :USB2.0 input
Physical
Weight :11.3KG
Pensile Direction :Optional Up or Down

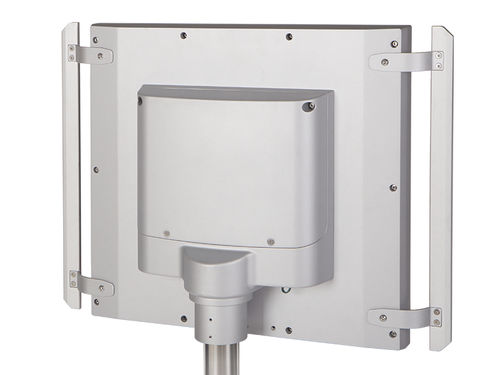

Fixed Stand of Cantilever :Suitable for full series
Handle of Operation Panel :Standard
Keyboard tray :optional
Operation Button :Optional Item, Nodka Standard: USB、Rotatable switch、Push button (Green , Red )、Key switch、Emergency stop switch）
Dimension (W x H x D) :573mm x 437mm x 139.5mm
Power
Input voltage :DC 12-24V support reverse polarity protection, overvoltage protection, overcurrent protection
Maximum Power Dissipation :15W
LCD
LCD Type :19" SXGA TFT
Resolution :1280 x 1024
Colors :16.7MB
Active Area (W x H) :376.32mm x 301.06mm
Backlight :LED
MTBF (hour) :30000hrs
Pixel Pitch (H x V) :0.294 x 0.294
Luminance :250cd/m2
Contrast Ratio :1000:1
Viewing Angle :(L) 85 / (R) 85 / (T) 80 / (B) 80
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Interface |
multitouch screen
|
| Mounting |
|
| Resolution |
1280 x 1024
|
| Other characteristics |
|
| Applications |
|
