About

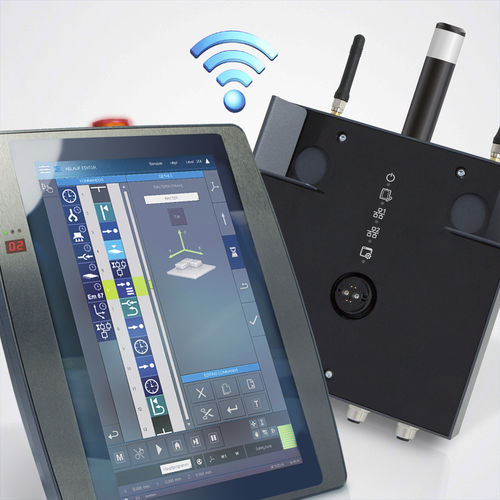

Mobile, wireless operating panel with data transfer via WLAN
Wireless Safety functions - SIL 3, PL e
High-performance EDGE2 Technology processor, OPC UA communication

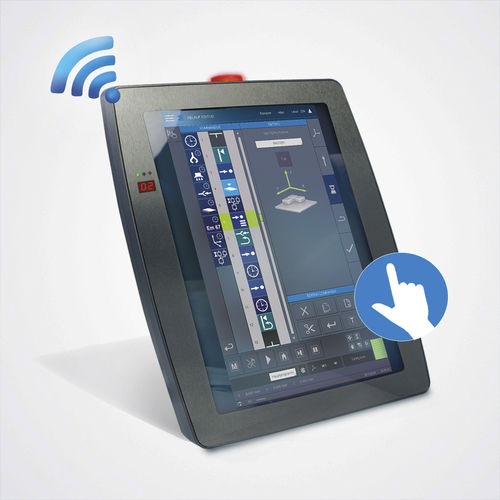

10.1" WXGA color display (16:10), multi-touch (projective capacitive), 800 x 1280 pixels
Battery pack integrated: 2 hours continuous-load operation without recharging
Light: only 1,350 g including battery pack and Safety elements
Safety Functions via WLAN
In addition to function-oriented data, Safety data from emergency stop and confirmation buttons, as well as key switch can be sent wirelessly with the HGW panel 1033-3 and the HGW 1033-32. Safety-relevant data is transmitted via the standard WLAN using the Black Channel principle. The Safety panels are TÜV-certifiied and with SIL 3, PL e, meet the highest requirements.

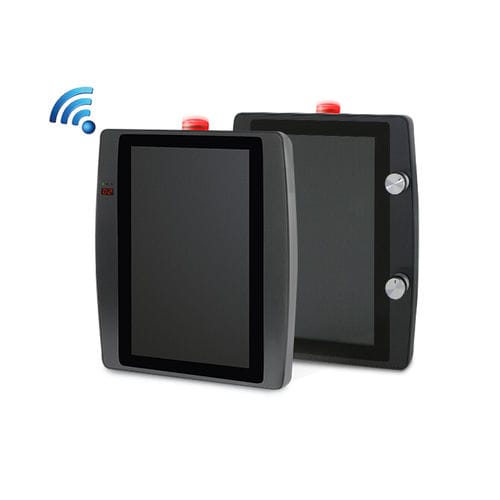

Wireless HMI variants
The wireless hand-held panel is available in various models:

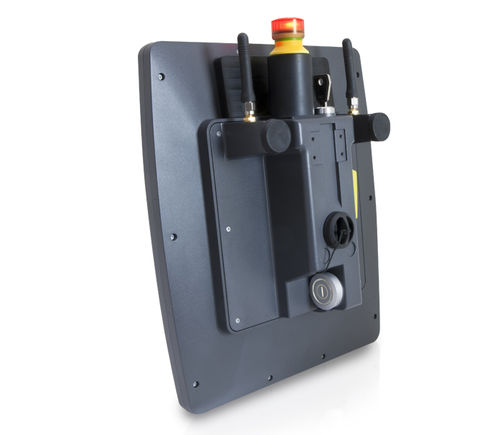

HGW 1033-3 with Safety functions: active illuminated emergency stop, confirmation button and key switch
HGW 1033-32 with Safety functions and rotary encoder

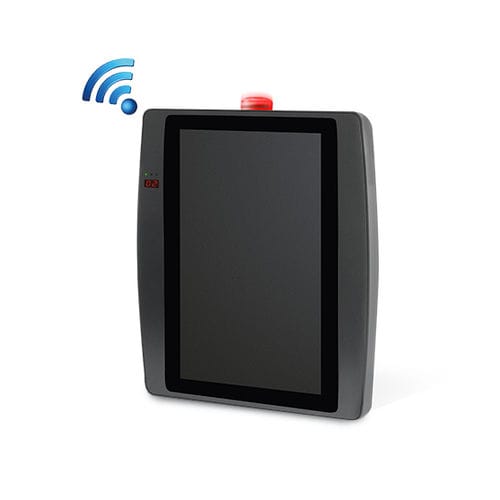

HGW 1033 without Safety functions
HGW 1033 landscape, without Safety functions
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Interface |
multitouch screen
|
| Mounting |
mobile
|
| Processor |
dual-core
|
| Other characteristics |
|
| Applications |
|
