Multiple-disc clutch MC series

Multiple-disc clutch MC series

Multiple-disc clutch MC series

About

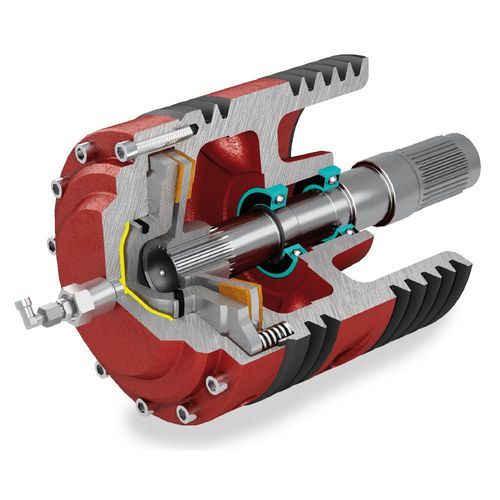

Hydraulic control clutches are the most convenient and reliable system for engaging or disengaging cardan transmissions, pulleys or other components that activate important machine functions.
Hydraulic Clutches can also be used as hydraulic brake.
Depending on the torque to be transmitted, the hydraulic control clutches are available with two or more friction discs and different dimensions.
The hydraulic cylinder is fed by a rotating distributor, produced by Bondioli & Pavesi, or by a shaft of the gearbox, depending on the requirements of the application. Smart hydraulic control is provided by the Bondioli & Pavesi control unit which is programmed to manage and optimise clutch operation in relation to the needs of the machine.
Bondioli & Pavesi helps builders of mobile and industrial machinery design and develop hydraulically controlled multidisc clutches that meet specific engineering needs.



PARAMETERS

Parameter Name Parameter Value
Type
multiple-disc
Operation
hydraulic
Torque (Nm)
  • 600 - 600
  • 0 - 0
