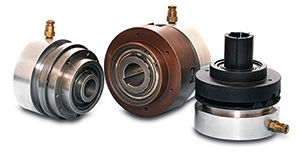

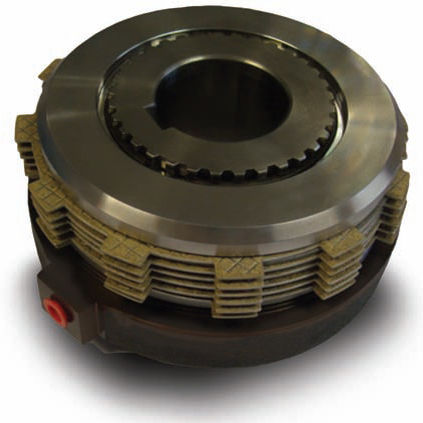

Series 66H-02 pressure-applied rotating cylinder multi-disc clutches are designed for use in oil. The pressure supply is fed axially along the mounting shaft and radially outwards through the clutch hub into the cylinder. Positive disengagement is achieved by the use of release springs between the inner plates.
Standard drive rings available as optional extras.
Clutch does not require adjustment
Torques can be varied by regulating supply pressure
Bearing-free design eliminates bearing life considerations
Speed of engagement can be controlled by varying pressure supply flow rate
Individual plate separation ensures low drag torque
Large friction area gives extended plate life
Multi-disc design results in compact high torque clutch
No axial thrust transmitted to adjacent components

Parameter Name	Parameter Value
Type	multiple-disc
Operation	pneumatic
Torque (Nm)	450 - 450 76 - 76
