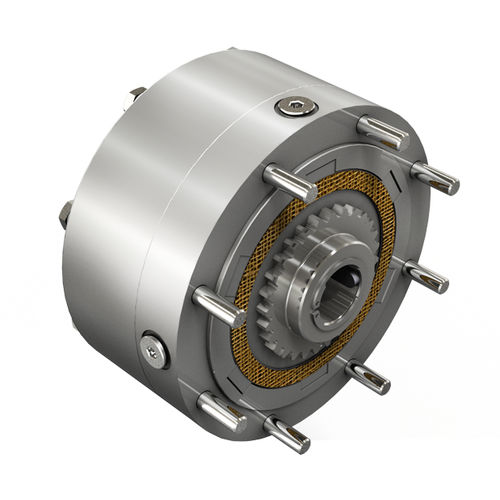

The spring loaded SL brakes are designed for all applications where a fail safe brake is required.
The brake consists of an hydraulic assembly, a plate assembly and a driven hub which can be supplied by TRANSFLUID upon request or can be manufactured by the Customer.

OPERATION
SL brake is a hydro-mechanical device which is Spring Loaded and hydraulically released.
A spring load exerts a compressive force between steel plates, which are mounted on the rotating shaft, and sintered plates mounted in the gear tooth ring.
When oil pressure is applied, the spring load is relieved and the plates are free to move axially on the shaft hub allowing free to move axially on the shaft hub allowing free rotation of the shaft.
The brake is re-applied by releasing the oil pressure.

Parameter Name	Parameter Value
Type	multiple-disc
Operation	spring, hydraulic, mechanical
Other characteristics	safety emergency for motors for heavy-duty applications for crane for vehicles for marine applications
Torque (Nm)	830 - 830 93 - 93
