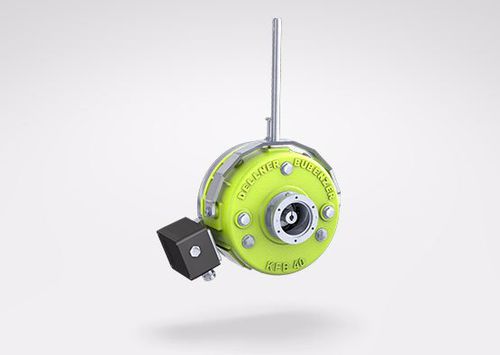

The KFB is a spring applied safety brake which is mainly used in gantry, trolley and hoisting application on harbour crane systems, in dynamic and static use at general industrial applications, in mechanical engineering, steel mills, coal mining or wind energy systems.

MAIN FEATURES
Spring applied safety brake
Electromagnetic released
Protection-class IP67 – seawater protected
High wear reserve by multiple air gap adjustment
Small construction at high work capacity
High availability caused by high durability
Functional without cover
Emergency release screws

OPTIONS
Special brake torque
Handlever
Micro or proximity switch:
• Monitoring the function on/off
• Maximum air gap (wear-monitoring)
Lateral junction box
Tacho preparation with all mounting parts
Cover bore
Shaft sealing
Special voltage
Anti condensation heater
Radial cable outlet
Special flange

Parameter Name	Parameter Value
Type	multiple-disc
Operation	electromagnetic, spring, mechanical
Other characteristics	safety emergency
Torque (Nm)	600 - 600 50 - 50
Power (W)	79 - 344
