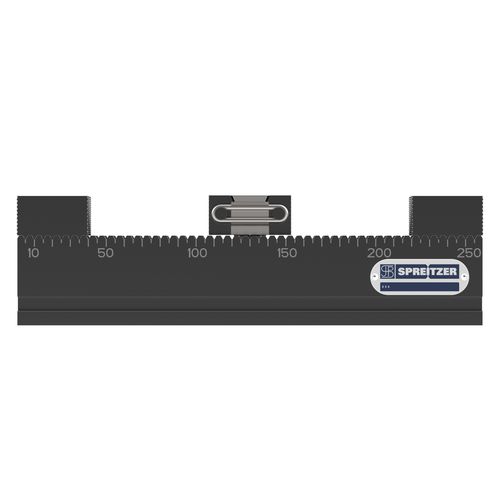

Multiple clamping system MMS

Multiple clamping system MMS

Multiple clamping system MMS

About


The multiple clamping system MMS allows positioning and clamping of two or more workpieces at the same time.
By using a number of clamping elements in a longitudinal and diagonal direction the work area can be used more efficiently.

The compact construction allows an economic application on palletizing and automation systems.


Properties

Clamping of two workpieces against fixed stop
Clamping from outside to inside (external clamping)
Modular combinable
Clamping jaws with pull-down effect
Material: modified steel

Finish: hardened, black-finished
Functional surface precision grinded
1 Pair of clamping jaws included
Pairing accuracy 0,02 mm

Explanation type: model length (mm)-width (mm)

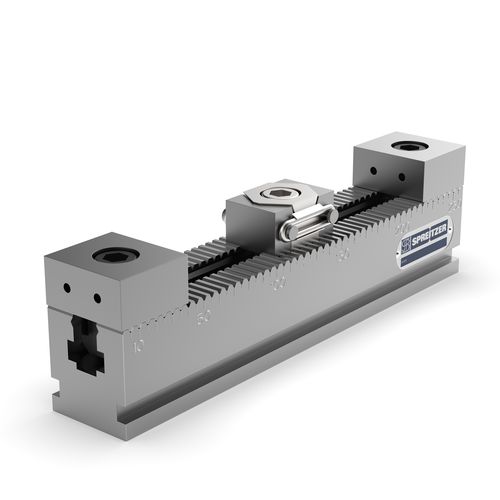

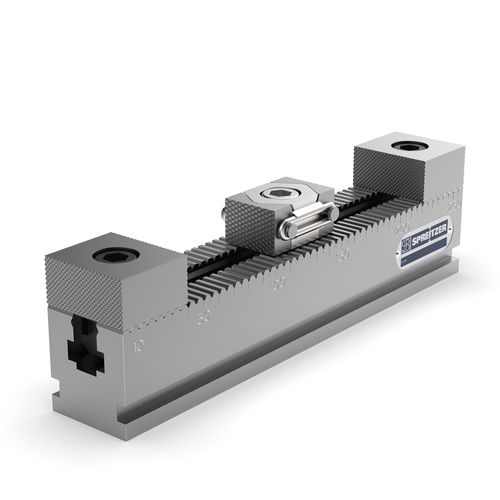

Type: MMS 260-50-1 (jaws serrated), MMS 260-50-2 (jaws grinded with fixturing holes).

Please specify the type when raising a request.



PARAMETERS

Parameter Name Parameter Value
Type
mechanical
Applications
workpiece
Other characteristics
  • compact
  • multiple
  • modular
  • steel
Clamping force
30,000 N
