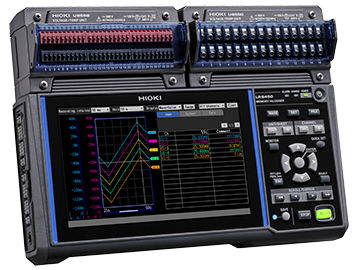

MEMORY HiLOGGER LR8450
1 ms Sampling Portable Logger Expandable to 120 Channels with Your Choice of Plug-in Input Modules

Overview
Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The LR8450 offers 1 ms sampling across up to 120 channels, and can be paired with 5 different types of plug-in input units. New input modules measure strain and distortion, ideal for automotive applications involving the evaluation of vehicle components as well as robotic equipment.
Key Features
• - Expandable to 120 ch with wired/plug-in units
• - Record voltage output from pressure and other sensors with 1ms sampling speed
• - Directly connect strain gauge and measure signals in as fast as 1ms intervals
• - Significantly reduced effects from noise let you safely measure in high voltage and high frequency areas such as around inverter motors

Stable Logging - Even at High Voltages and Frequencies
Minimize the Effects of Noise

The LR8450 reduces the effects of noise to deliver stable logging, even at high voltages and frequencies.
Legacy data loggers could not log temperature accurately in noisy environments due to the effects of high frequencies, which caused values to shift or fluctuate significantly.
The new Hioki Memory HiLogger LR8450 uses a revamped design to dramatically reduce the effects of high-frequency noise, and is ideal for temperature logging of inverters and batteries.

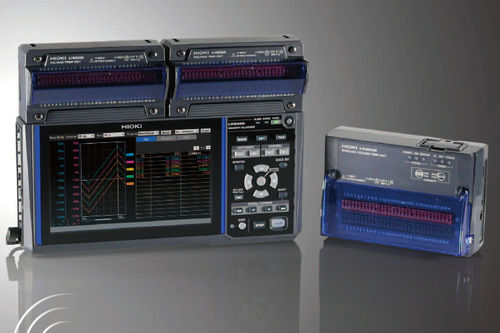

Gain up to 120 channels of input simply by adding a total of four plug-in units

Parameter Name	Parameter Value
Measured quantity	temperature, humidity, pressure, voltage, frequency, resistance
Display	with screen
Other characteristics	multi-channel portable multifunction
