Comprehensive Upgrade Weighing Controller with OIML and Various Optional Software Embedded

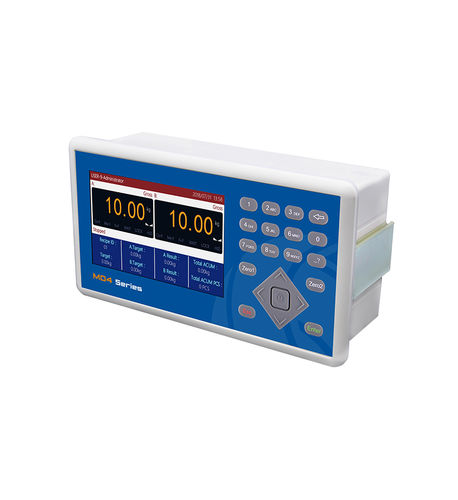

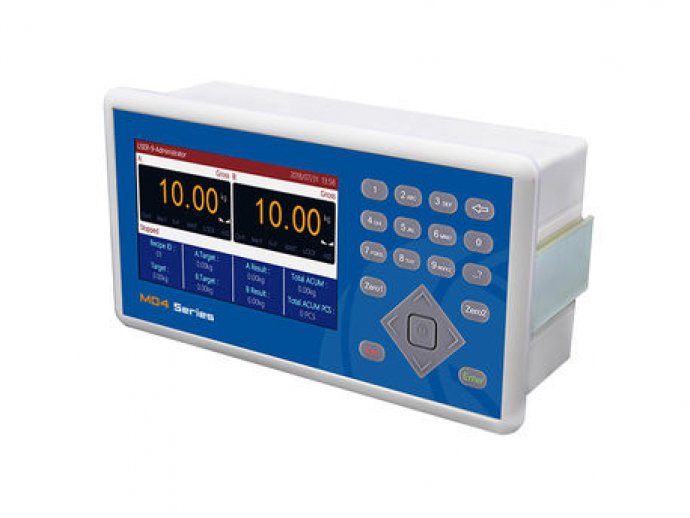

M04 Weighing Controller with single or double hopper is specially designed for weighing relevant system. There are several options that can be chose to tailor your business. The new algorithm simplifies the operation and enhances the working efficiency and accuracy. USB port and two serial communication ports makes it easier to connect with the system. Currently, M04 is used in a wide variety of applications, such as bagging, bulk scale, liquid filling, and loss-in-weight batching/feeding and so on.
OIML Approval
Various Software Options
● Bagging scale
● Bulk scale
● Liquid filling
● Loss-in-weight
● Batching
Robust New Generation
● New generation chip
● Adaptive optimization algorithm to accelerate working pace and increase accuracy
User-friendly
● 5 inch TFT LCD concise operation interface
● Automatic Zero-Tracking function
● Two serial communication ports to connect with printer, computer or a second display
● Programmable I/O module: 8 in and 12 out I/O module as standard, 12 in and 16 out as extending option.
High Accuracy
● Display accuracy: 1/100,000
● Perfect balance between speed and precision with automatic three-speed feeding control
Flexible and easy to use
● With USB port, users can input and output all parameters, as well as upgrade system.
● Selectable A/D: 120/240/480/960 times/sec.
● 20 recipes can be stored for different weighing capacity.
● Multilevel of digital filter
● Widely used in packing system with or without a weighing material hopper
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
multi-channel
|
| Protection level |
IP65
|
| Other characteristics |
panel-mount
|
| Applications |
|
