General-purpose Weighing Controller with Touch Screen

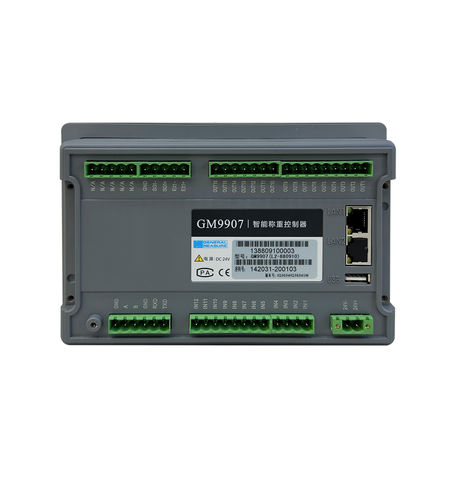

GM9907 is a general-purpose weighing controller series that is designed to control automatic packing machines. GM9907-LD with dual hoppers is for double scale packing machine. The brand new GM9907-L2 has 5 models to complete different functionality(with/without hopper, bulk scale, valve port, PLC). This series can be widely used in the industries of feed, grain, seed, and chemical and so on.

Various Software Options
• - Bagging scale
• - Bulk scale
• - Liquid filling
• - Loss-in-weight

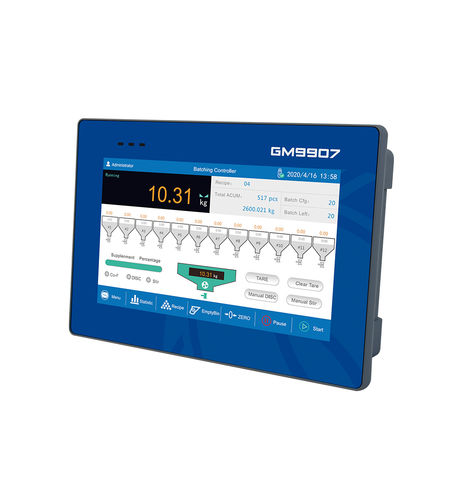

• - Batching

User Friendly

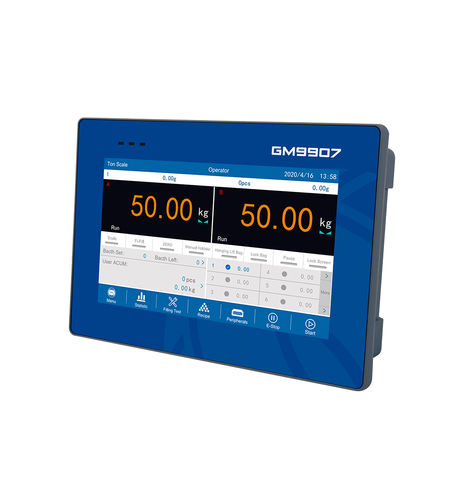

• - 7-inch full color touch screen
• - Date/time-set function

Advanced & Intelligent Model
• - Self-charging adaption
• - Support boot screen alteration and upgrade with USB
• - Two communication ports and Ethernet ports as standard connecting with computer or printer

Flexible Operation with high speed
• - 28 programmable input and output control ports (12 in and 16 out), which are customised
• - 40 recipes can be programmed and stored within controller for future choice and use.
• - Manual digital calibration and with reweighing function
• - Selectable A/D Converter 120/240/480/960 times/sec

High Accuracy
• - Display accuracy up to 1/100,000

Parameter Name	Parameter Value
Type	multi-channel Modbus RTU
Protection level	IP65
Other characteristics	with touch screen panel-mount
Applications	for filling machines for packaging machines
