About

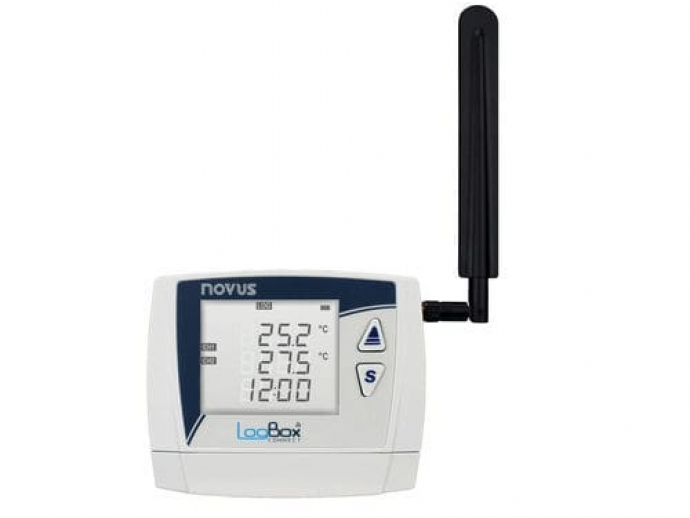

O LogBox LTE is a multichannel IoT data logger that operates on the NB-IoT and Cat-M1 bands, allowing for continuous monitoring of remote applications in a practical and secure way. The measured data is stored in the device's internal memory and published periodically to other cloud systems.
The LogBox LTE has two universal analog inputs, 0 to 10 Vdc or 4 20 mA, and one digital input that can operate as a pulse counter (flow sensors) or event recorder (door opening/closing). It also has a digital output that can be remotely activated via SMS or MQTT command, as it operates in the ""publisher"" and ""subscriber"" mode.
The LogBox LTE uses the NXperience software, which has the NXperience Trust version, meeting the technical requirements of the FDA 21 CFR Part 11 for computer system validation and GMP (Good Manufactoring Pratice).
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured quantity |
temperature, universal, level, flow, door opening
|
| Connector type |
GSM / GPRS, LTE, NB-IoT, 2G, MQTT
|
| Sensor type |
Pt100
|
| Display |
with LCD display
|
| Applications |
for monitoring
|
| Other characteristics |
|
| Memory capacity |
140,000 unit
|
