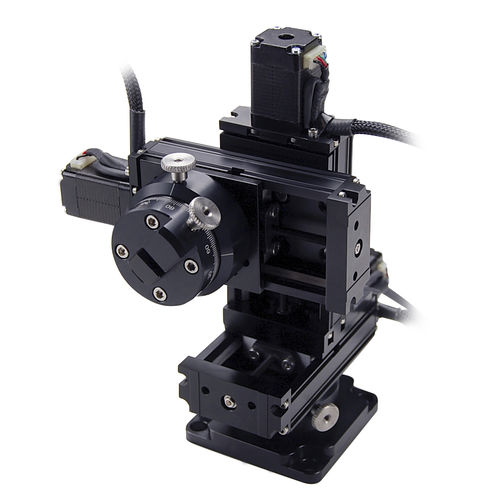

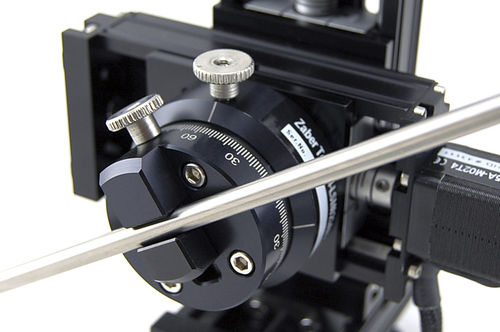

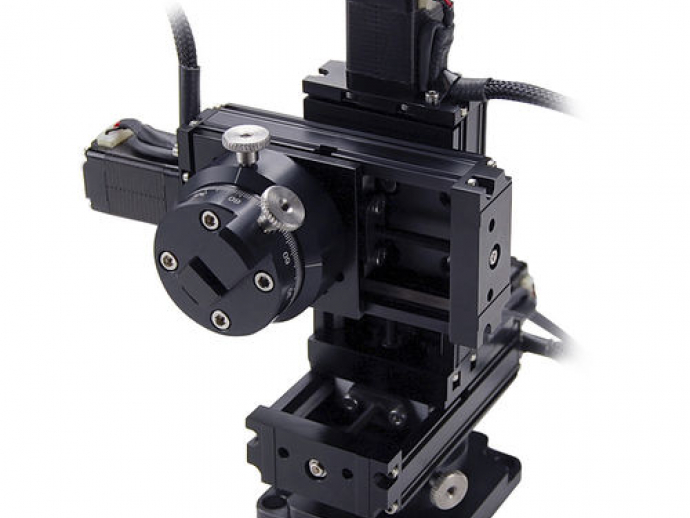

The Multi-Axis Positioning System, manufactured by Zaber Technologies, is designed as a standalone device that can be utilized for positioning probes under a microscope either by joystick or computer control. It has an adjustable probe holder that can mount probes with 2 and 13 mm diameter. A programmable or joystick-activated 4th virtual axis allows approach along probe angle.

Moreover, this product can be mounted to metric or imperial optical bread boards, and oriented in right or left hand designs. It is also available with a joystick and plug and play controllers.

Adjustable probe holder, up to 14 mm/s speed, 15 N thrust, 25 mm travel XYZ with resolution finer than 0.05 µm, programmable or joystick-activated 4th virtual axis to allow approach along probe angle, < 1 µm repeatability, 0.047625 µm microstep resol

Parameter Name	Parameter Value
Number of axes	multi-axis
Features	linear, automatic, vertical, horizontal
Applications	multi-function for fiber optics optical beam
Other characteristics	compact synchronized USB adjustable
