General

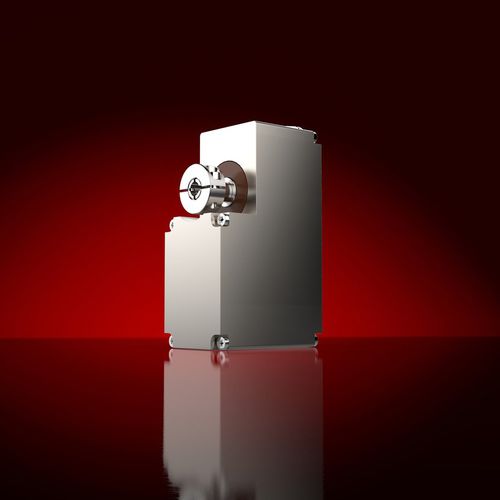

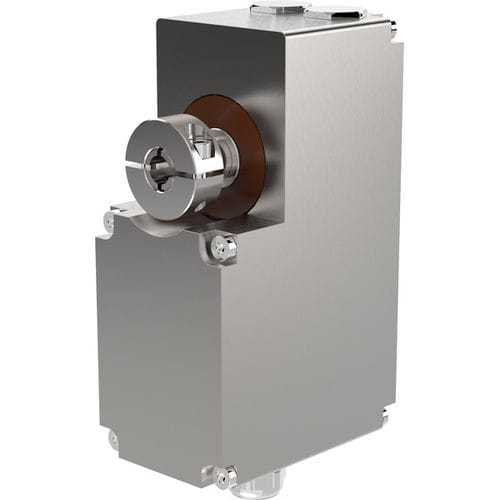

The SeGMo-Positioning forms a compact mechatronic unit
comprising a brushless DCmotor, a 32-bit microprocessor, a
compact power amplifier and a powerful gear, as well as a magnetic multiturn encoder.
Active system protection against thermal overload and comprehensive system software allow load-dependent duty cycles well
above 25 %.
The rigid aluminium housing with its high degree of protection
(IP 67) is suitable for a wide range of applications in various industrial areas.
Features
■ Nominal torque
- Housing size K 2.5 Nm at 70 min-1
(Duty cycle 25 %)
- Housing size L 5 Nm at 70 min-1
(Duty cycle 25 %)
■ Aluminium housing, anodised
■ Operating temperature -10 °C to +60 °C
■ BLDC motor
■ Magnetic multiturn encoder
- Detection range: 342 turns, also in de-energised state
■ Degree of protection IP 67
■ CANopen (CiA 402),
further interfaces via SeGMo-Box
■ Optionally with cULus component recognition
Advantages
■ Extremely compact for installation situations with little space
■ Monitoring of important system parameters ensures reliable
operation (overload protection)
■ Ready for use immediately after power on due to absolute
multiturn position detection
■ Maintenance-free due to sealed-for-life lubrication
Fields of application
■ Packaging machines
■ Food and bottling plants
■ Wood and plastic working machines
■ General mechanical and plant engineering

Parameter Name	Parameter Value
Number of axes	multi-axis
Features	rotary
