About

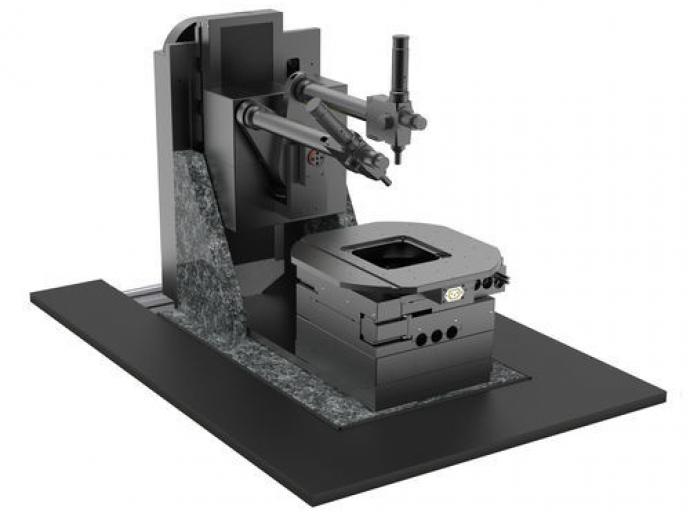

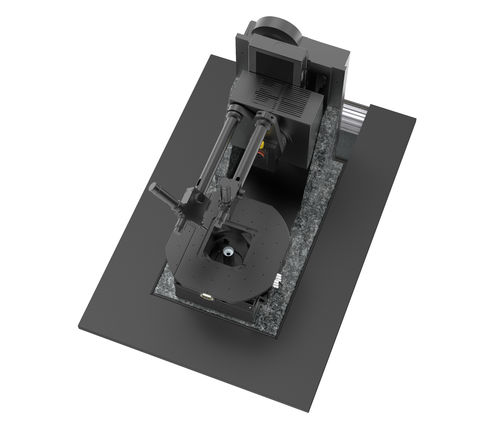

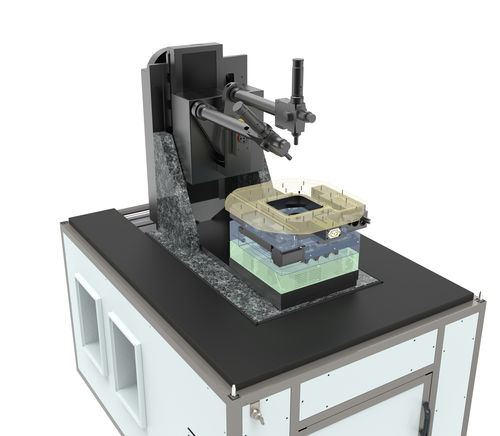

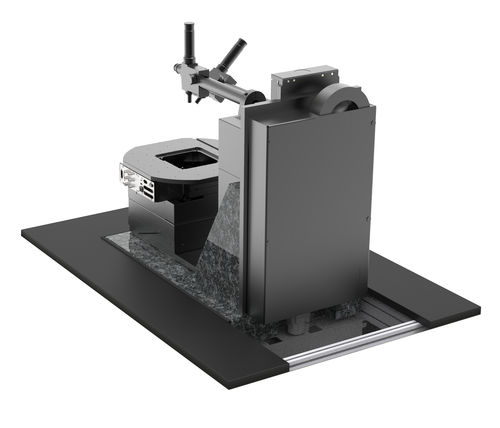

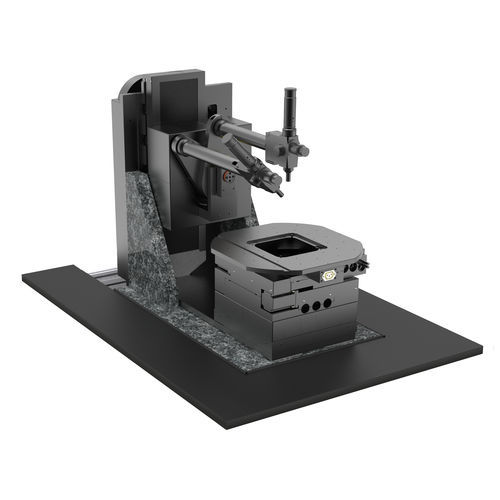

8-axis positioning system / goniometer
Customizable

• Automated 8-axis inspection from different angles
• Coaxial rotation system that pivots cameras / sensors / lighting around a common center point
• Ideal for inspection of displays

This 8-axis positioning system enables to analyze and inspect different sample geometries and other parts. Both cameras / sensors can be tilted across the sample and adjusted in height. In addition, the sample carrier can be tilted parallel to the measuring surface to compensate for differences between individual samples. XY Rz positioning allows the sample to be evaluated from any angle in spatial radiation pattern by the custom camera.

Specifications
- Stroke: 3° x 3° x 365° x 365 mm x 100 mm x 100 mm x 230 mm x 45° x 45°
- Repeatability: 0.005 - 0.007° / 2 - 4.4 µm
- Speed: 10 - 60 mm/s
- Max. load: 50 - 250 N
- Drive: manual, belt (Rxj, Ryj) / stepper motor, ball screw (XYZ) / stepper motor, belt (Ry1, Ry2)
- Motion Controller: FMC400/450, ACS, PLC integration.

Customized options:
- Process adaptation, sample holder, head / sensor
- Versions for clean room ISO 14644-1 (up to class 1 on request)

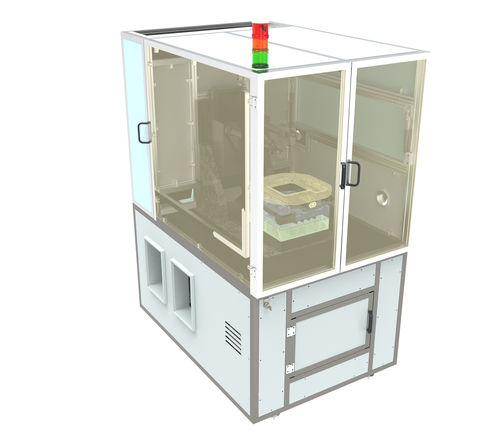

- Rack, vibration isolation, enclosure, safety concept
- Connections for suction and circulating belt covers
- Extension of degrees of freedom for XYZ-Rx-Ry-Rz motions
- Individual solution finding with 3D design for the positioning task



PARAMETERS

Parameter Name Parameter Value
Number of axes
  • multi-axis
  • 8-axis
Features
linear, automatic, vertical, rotary, horizontal, portal, optical, double trunnion
Applications
  • industrial
  • multi-function
  • for laboratory applications
  • for geometric alignments
  • for quality control
Other characteristics
  • compact
  • ball screw
  • high-resolution
  • adjustable
  • synchronized
  • lead screw
  • with stepper motor
  • combined modules
  • stacked architecture
  • belt-driven
  • precision
  • high-speed
Repeatability (mm)
0.005 - 0.005
Load (kg)
5 - 25
Stroke (mm)
100 - 365
Speed (mm/s)
10 - 60
