About
The versatile control unit for handling, assembly technology, linear robots

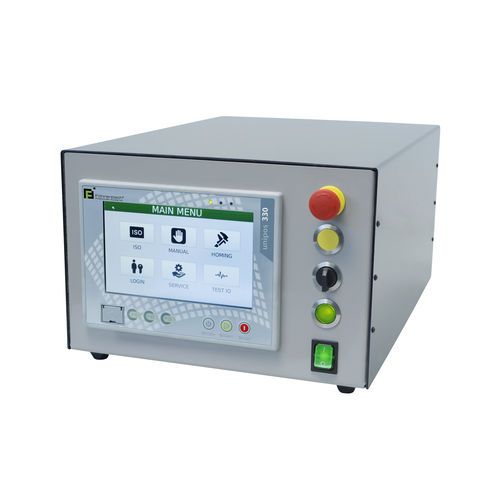

The unipos 330 is a universal, modular CNC continuous path control for up to 3 axes (interpolating) in connection with a PLC for controlling most reliable applications for machine construction automation technology, machine tools and special applications.
Depending on the design, either stepper motors or servomotors are used as axis drives.
The integrated panel PC with the LINUX operating system allows convenient programming of your application and the user interface (HMI).
Features
Interpolating continuous path control for a maximum of 3 servo axes
CNC programming using G code
1 to 3 axes / stepper motors or servomotors
Processor: 32-bit microcontroller, 400 MHz, without fan
7" touch screen, resolution: 800 x 480 DPI, TFT colour
3x freely programmable keys
Connection option for up to three drives
Either servomotors or stepper motors
Modular overall structure
USB interface, on the front side
Ethernet network interface TCP/IP, on the front side
Remote maintenance via the internet
Option: Integrated emergency stop SIL3, emergency stop circuit guided on connector
LINUX operating system
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Number of axes |
multi-axis
|
| Signal type |
|
| Other characteristics |
|
| Product applications |
|
