Axis controller with integrated PLC with up to 48 inputs / outputs

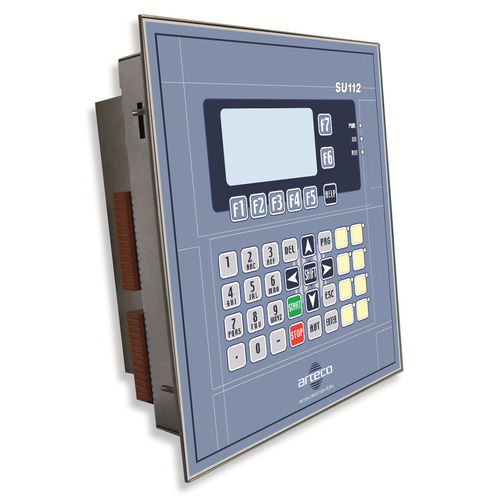

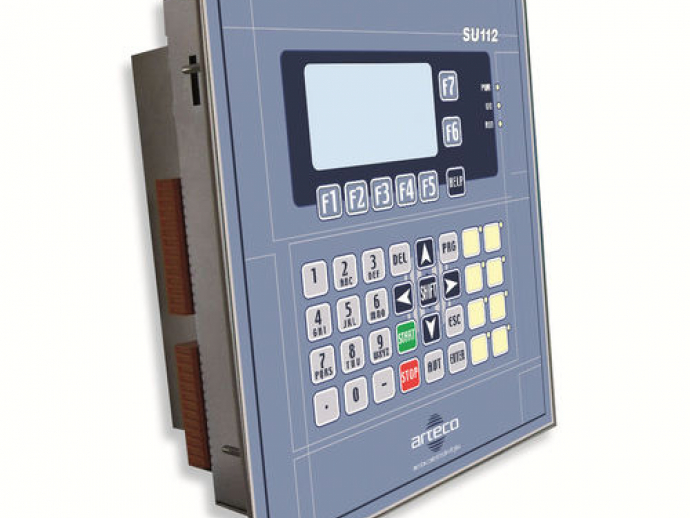

SU112 is the low cost Axis Controller with included PLC made by Arteco Motion Tech.
Minimum configuration: 2 interpolated axis with included sensors, 16 in, 16 out, 2 analog input and 1 serial port RS232/485.
Thanks to the slots located in the back side of the multiaxis controller, SU112 can be configurated depending on the users needs. There are 4 slots available. Each slot can receive the available expansions boards as the 8 digital input + 8 digital output, the 1 axis expansion, 2 axis expansion, the 8 digital input + 8 digital output + canbus port.
So, the maximum configuration can reach 5 interpolated axis with included sensors, 32 in, 32 out, 2 analog input, 2 serial ports RS232/485, 1 CANbus port to connect the controller to other Axis and I/O expansion modules for distributed I/O and Axis.
Each state of the I/O is shown by LEDs located near each terminal block.
SU112 provides the 8 rows x 20 characters LCD display with backlight feature. The display and the keyboard can be controlled using the implemented functions and instructions of the PLC.
A rich set of graphics and text commands allows the user to make his HMI, 100% according to his needs.
SU112 can be programmed using a rich set of Motion Control Functions: Simple positioning, Linear interpolation, Electronic cam, Boolean cam, Optimized trajectories generating starting from a points series, Rotative Axis, Control of Pick and Place machines, Circular interpolation, Self-learning and its execution.

Parameter Name	Parameter Value
Number of axes	multi-axis
Motor type	linear
Technology	integrated
