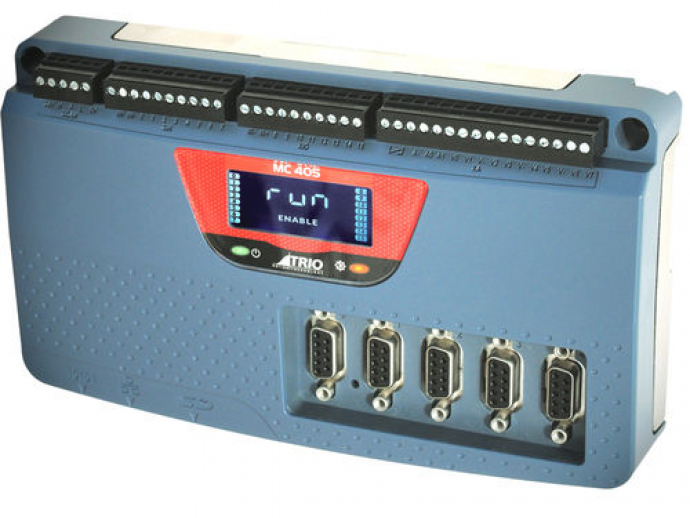

Multi-axis motion controller MC405

Multi-axis motion controller MC405

Multi-axis motion controller MC405

About


The MC405 is a high specification Motion Coordinator using a high performance ARM11 processor, with five flexible axis ports and four Voltage outputs.

Advanced 4 Axis Closed Loop Servo / 5 Axis Pulse Direction
Linear, Circular, Helical and Spherical Interpolation
Flexible CAM shapes, Linked Motion
Biss, EnDAT and SSI Absolute Encoder Supported
Hardware Linked Outputs for Camera / Laser Control
Ethernet-IP / Modbus TCP / Ethernet Interface Built-In
125 – 2000 µsec Selectable Servo Update
Precise 64 bit Motion Calculations on ARM11 Processor with VFP
IEC 61131-3 Programming
Multi-tasking BASIC Programming
Text File Handling
Robotic Transformations
Micro SD Memory Card Slot
CANopen I/O Expansion
Backlit LCD display
RoHS, UL Listed, CE approved



PARAMETERS

Parameter Name Parameter Value
Number of axes
multi-axis
Motor type
servomotor
Signal type
  • Ethernet
  • CANopen
  • Modbus TCP
Technology
integrated
