General Info.

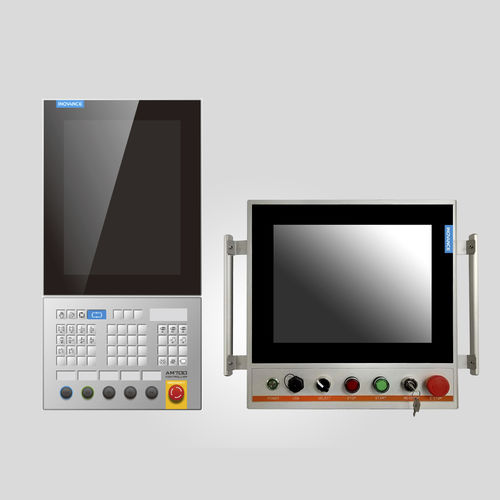

• Integrates PLC and HMI functions
• Optimizes intelligent equipment processing scheme:
• PLC and HMI work together to optimize the control structure for fast response times
• Multi-axis motion control with visual editing
• Integrated visual programming control system• Min. bus cycles 500 μs
• Multi-axis motion control: 1 ms synchronization (32 axes)
• 15-inch resistive touchscreen
• Interactive option with user-friendly interface
• Fan-free design
• Three installation options: backplate, pillar and cantilever
• Extendable standard keyboard and mouse
• Direct access and operation of UDISK data
• Optional programmable numerical control keyboard

Parameter Name	Parameter Value
Number of axes	multi-axis
Technology	integrated
Other characteristics	programmable with programmable logic controller (PLC) synchronization with integrated HMI
Product applications	3D motion
