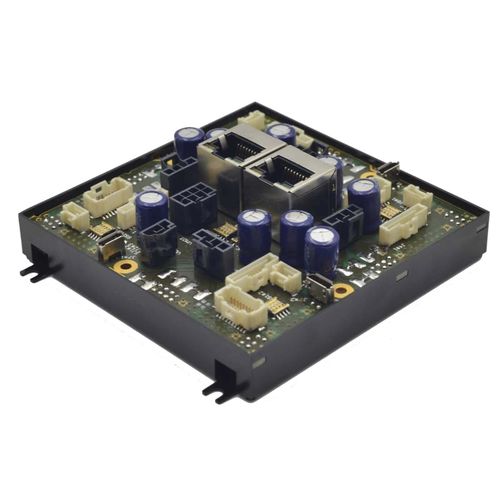

The iPOS4803-SY is a family of fully digital intelligent servo drives, based on the latest DSP technology and they offer unprecedented drive performance combined with an embedded motion controller. Suitable for control of brushless DC, brushless AC (vector control) and DC brushed motors the iPOS4803-SY Multi Axis System accept as position feedback incremental encoders, absolute encoders (SSI, BiSS-C, EnDAT, TAMAGAWA, Panasonic, Nikon, Sanyo Denki), digital and linear Hall signals. All drives perform position, speed or torque control and work in single, multi-axis or stand-alone configurations. Thanks to the embedded motion controller, the iPOS4803-SY Multi Axis System combine controller, drive and PLC functionality in a single compact unit and are capable to execute complex motions without requiring intervention of an external motion controller.
• Electrical characteristics:
• Power supply:
• Motor supply: 7 – 48 VDC
• Logic supply: 6 – 48 VDC
• Output current (per drive):
• 3 A continuous at 48V motor supply voltage
•14 A peak current
• Motor types:
• Brushless DC motors (BLDC, PMSM motors)
• Brushed DC motors (DC motors)
• Voice coil actuators
• Linear and Torque motors
• 3-Phase Stepper Motors

Parameter Name	Parameter Value
Number of axes	multi-axis
Motor type	DC linear brushless
Signal type	CANopen Ethernet EtherCAT RS-232 SSI BiSS
