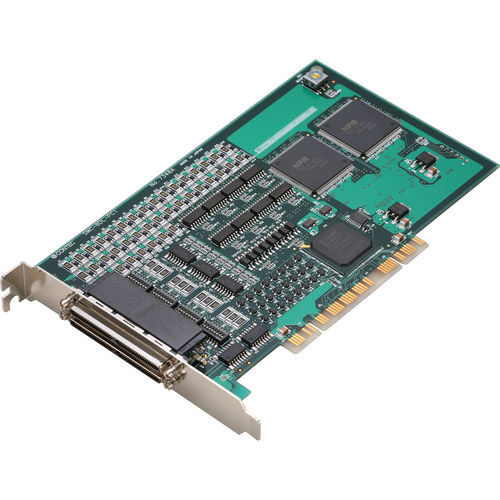

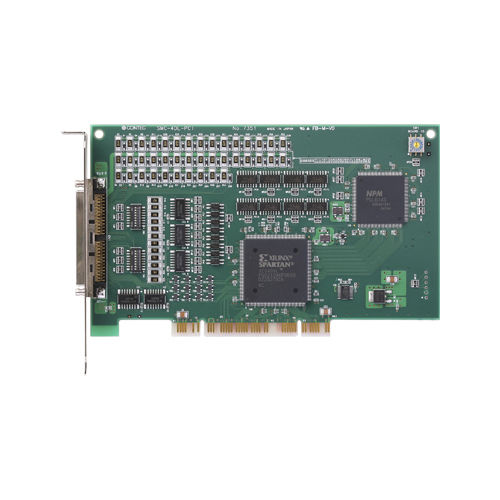

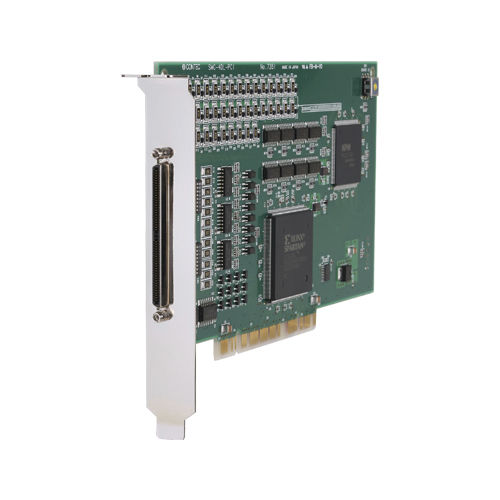

Multi-axis motion control card SMC-4DL-PCI

Multi-axis motion control card SMC-4DL-PCI

Multi-axis motion control card SMC-4DL-PCI

About


This product is a motion control board for PCI bus conformity that can position of a stepping motor and a servomotor(a pulse line input method). It is equipped with functions such as positioning, origin return, linear interpolation, and a S type accelerate and decelerate.

Capable of multi-axis independent control and pulse output up to 9.8Mpps
Control for up to 4 axes and motor control pulse output up to 9.8Mpps are available.Command pulse for motor control supports common pulse, independent pulse and 90° phase difference pulse.

Capable of controlling the jogging at fixed speed or by linear/S-curve acceleration and deceleration, positioning,and origin returning
Carrying a motor control IC in the PCL6100 series from Nippon Pulse Motor Co., Ltd., capable of controlling jogging,positioning, origin returning, synchronization control and linear interpolation.

Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit
Encoder input circuits can be connected with differential output,TTL level output, and open-collector output. Pulse output circuits can be connected with differential input, opto-coupler and TTL level input.

With the multi-axis synchronization control function,capable of aligning the timing for operation start and end
Synchronization control of multi-axis simultaneous start/stop control, linear interpolation operation is available.

Capable of speed and position overriding
Capable of changing the speed and target position during operation.



PARAMETERS

Parameter Name Parameter Value
Number of axes
multi-axis
Motor type
linear
Other characteristics
synchronization
Product applications
  • positioning
  • PCI
