Multi-axis motion control card PPCI, NPMC Series

Multi-axis motion control card PPCI, NPMC Series

Multi-axis motion control card PPCI, NPMC Series

About

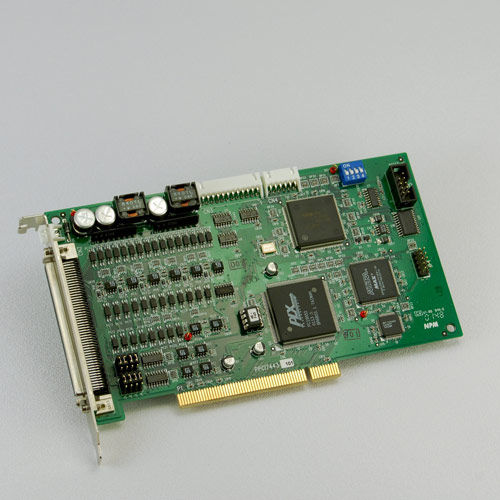

PPCI series (PPCI7443), offer by Nippon Pulse, is an advanced PCI-bus format 4-axis motion control board that controls stepper motors or/and servomotors.

System Design

- The PPCI7443 incorporates a PCL6045 series motion control chip as part of its compact design
- Comes with user-friendly software that incorporates MS-DOS, C/C++ programming library; Windows® 95/98/ME/NT/2000 DLL; and a test monitor
- The software allows for easy set-up and supports up to a maximum of 12 PPCI7443 cards, allowing for operation of up to 48 axes.

The Nippon Pulse NPMC series is an advanced PC/104-bus format multi-axes motion control board that controls stepper motors or/and servomotors.

System Setup

- The PCL6045 motion control chip is used as key component for 4-axes (NPMC6045A-4104) controller boards



PARAMETERS

Parameter Name Parameter Value
Number of axes
multi-axis
Motor type
servomotor
Technology
advanced
