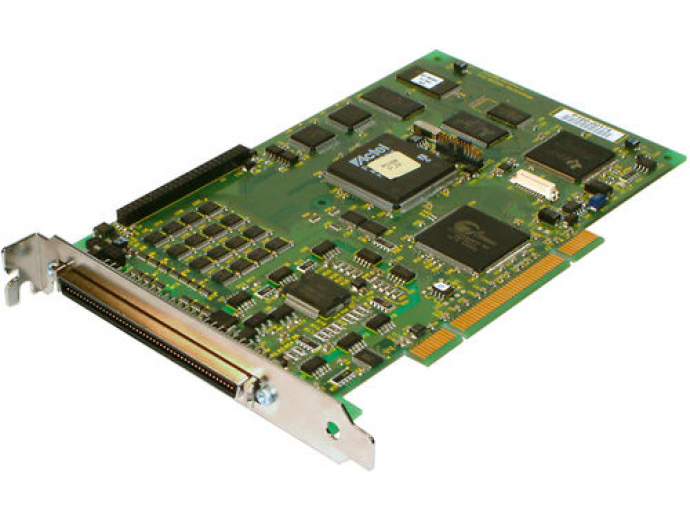

The PCI 208 is based on a 120Mhz 32-bit floating point DSP supported by 8Mbits of SRAM, 32 Mbits of Flash memory and 128kbits of dual port RAM for PCI communications. A large FPGA provides for up to 8 stepper axes, or 8 axes with encoder feedback, or mixtures of the two, or up to 4 stepper axes with encoder verification.
Short PCI Card
2-8 Axes Stepper/Servo control
High Speed Dual Port RAM Interface
OCX Software Component eases application software
Opto-isolated IO (2 In / 10Out) with CAN I/O expansion
100 Way MDR Connector
2 CAN Interfaces

Parameter Name	Parameter Value
Number of axes	multi-axis
Motor type	servomotor stepper
Technology	advanced
Other characteristics	PCI programmable 32-bit
