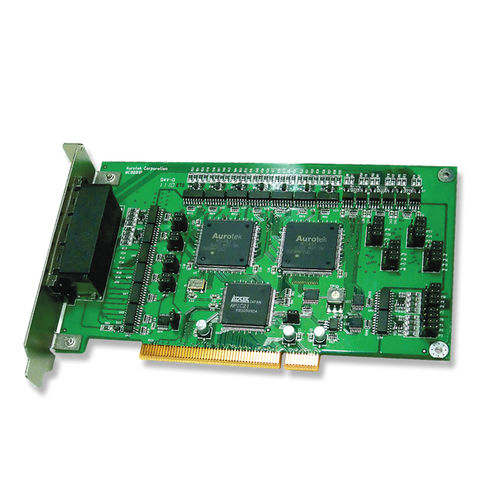

Multi-axis motion control card MC8881P

Multi-axis motion control card MC8881P

Multi-axis motion control card MC8881P

About


MC8841P / MC8881P is a high speed motion control board, that can used to drive step and servo motor.

MC8841P / MC8881P features include:
-4/8 axis independent position / speed controllable.
-2-4 / 2-8 axis, 2 axis circular, continuous, linear interpolation cross with different MC8841/MC8881s.
-Max. pulse output rate is 8 Mpps (4Mpps when interpolation).
-Max. acceleration rate is 1024 Mpps2 .
-It can easy to set up personal computer based on PCI interface.



PARAMETERS

Parameter Name Parameter Value
Number of axes
multi-axis
Motor type
  • servomotor
  • stepper
Signal type
digital
Technology
PC-based
Other characteristics
32-bit
