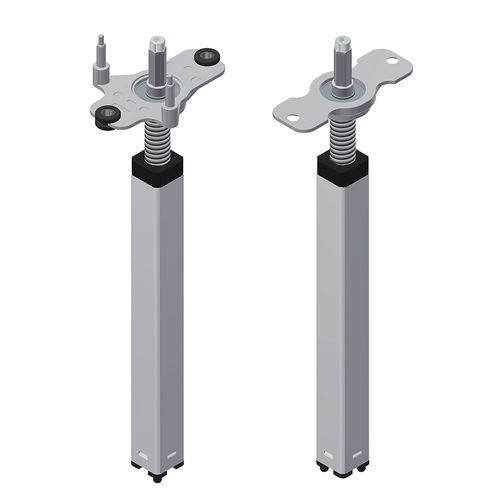

Spindle unit with motoradapter 3130.14
Universally applicable lifting unit with bevel gear head for linear drive
solutions. Possible applications are height adjustable tables, various adjustment functions for furniture items as well as all manner of linear adjustment in residential, mobile home or industrial fields.
The lifting unit is available in different spindle pitches with customer specific spindle lengths and can be combined with most Ketterer drives.
Special Features
Ideal for the drives: 3312.00/ 3133.00 / 3133.48 /3130.00
Available in customized spindle lengths
Simple mounting
Connection to the drive hex 9 mm
Technical notes
The lifting units must be protected against lateral forces by a separate guide system.
Attention: The spindle systems with a spindle pitch > 3mm may not be self-locking. Check the self-locking effect in the application.
The lifting unit is only pressure loadable.
Incorrect dimensioning of the guide system can damage the lifting unit: Please note the design and safety instructions for spindle drives. You will find them at:
https://www.ketterer.de/en/downloads/instructions
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Other characteristics |
|
