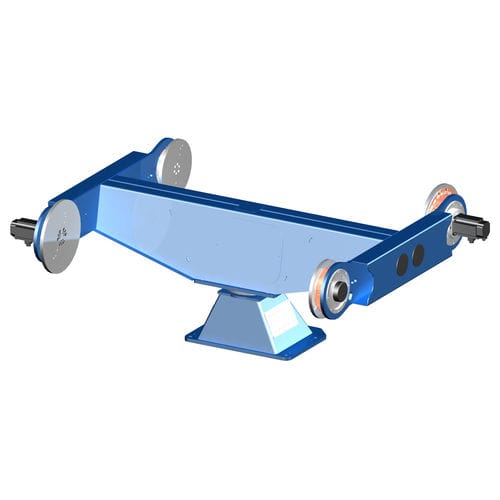

The RWV2 is a 2-station positioner, each with a horizontal rotary axis for the station changer. Each station has an endlessly rotating axis.

The positioners have a payload of up to 2,500 kg and are available as standard with distances between the face plates of 2,000, 2,500, 3,000 or 3,500 mm.

Additional sizes are available. As an option, one or two robots can be placed in the centre of the table.

Parameter Name	Parameter Value
Type	motorized
Orientation	rotary
Number of axes	2-axis
Product applications	for robots, parts for robots parts
Payload (kg)	0 - 2500
