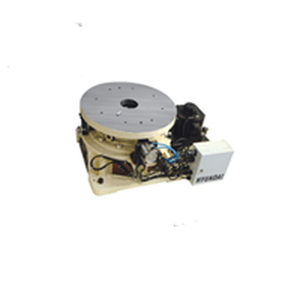

Motorized positioner HSP1-2500 / HSP1-5000

Motorized positioner HSP1-2500 / HSP1-5000

Motorized positioner HSP1-2500 / HSP1-5000

About


Model HSP1-2500 HSP1-5000
Structure Turn Table
Degree of Freedom 1
Payload 2,500 kg 5,000 kg
Drive Method AC Servo
Range of MotionRotation 1±360°
Rotation 2-
Maximum Speed Rotation 180°/s 60°/s
Rotation 2 -
Allowance Moment 320 kg.m 356 kg.m
Allowance Inertia Moment 2,940 kg.m2 6,500 kg.m2
Repeatability ±0.2 mm
Approx. Weight 650 kg 950 kg
Ambient Condition 0 ~ 45° C (273 ~ 318 K)



PARAMETERS

Parameter Name Parameter Value
Type
motorized
Orientation
rotary
Number of axes
multi-axis
Technology
digital
Payload (kg)
2500 - 2500
