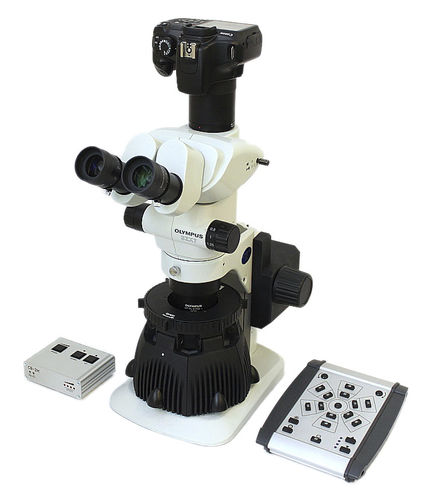

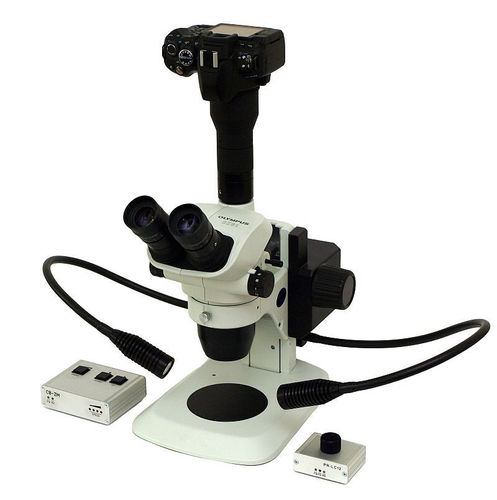

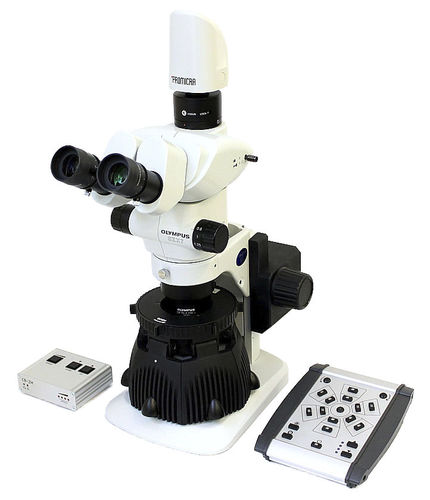

PRO-SZM1 is an inexpensive focus drive developed by PROMICRA for focus motorization of stereomicroscopes with 76mm mount (yoke). Manual focusing option is maintained. The focus drive can be used for automatic creating of fully focused (EDF) images using Deep Focus extension module for QuickPHOTO software, optionally also in combination with HDR module for automated EDF + HDR imaging.

Features
• PRO-SZM1 focus drive is delivered mounted on a stereomicrocope stand with 76mm mount (yoke) as a single unit.

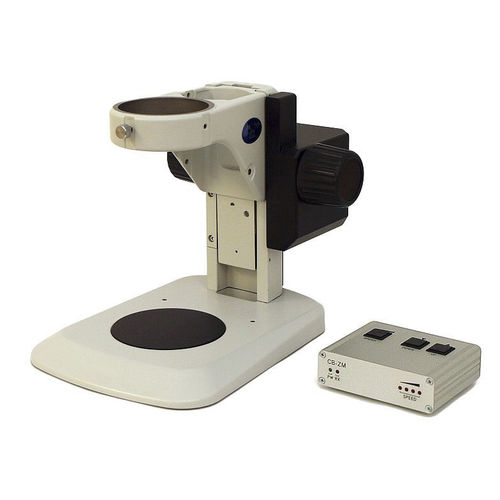

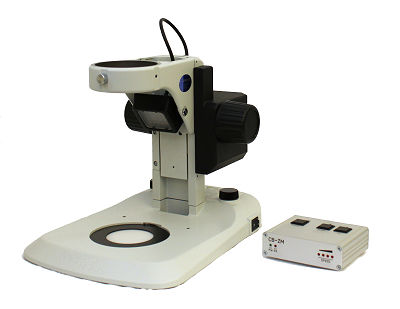

• Two stand variants available: standard stand (SZ2-ST-ZM item) and stand with combination of reflected and transmitted LED illumination (SZ2-ILST-ZM item)
• Motorized Z axis (travel and focusing)
• Manual focus function maintained
• Minimal step 65 μm
• Travel range 12 cm; 4.7 inch
• Z-movement range protected by built-in limit switches
• Controlled by CB-ZM control unit (CB-ZM-SZM1 variant – required):
• Focusing and Z-movement by UP and DOWN buttons
• Change of focus speed using a SPEED button – 4 predefined speed levels available
• Automatic speed incrementation when holding UP or DOWN button
• Compatibility with Deep Focus Extended Depth of Field (EDF) module for QuickPHOTO software, optionally also in combination with HDR module for EDF + HDR imaging
• Remote control by a two-button foot switch (optional)
• CE certified and RoHS compliant

Parameter Name	Parameter Value
Options	motorized
