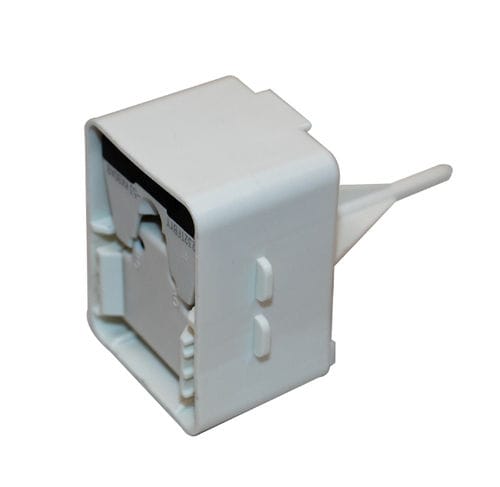

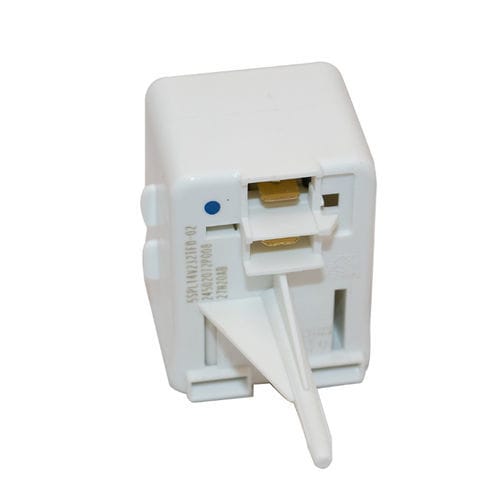

KLIXON® SP Refrigeration Package is a compact motor starter and motor protector package. The SP serves as a combination control which: 1. Uses industry leading 4TM motor protector 2. Performs the PTC solid state starter function 3. Replaces the compressor terminal cover 4. Available for both RSIR and RSCR applications 5. 5SP eliminates the need of wiring harness for a run capacitor The SP unit plugs directly onto the compressor terminal pins. This provides installed cost savings opportunities through the elimination of the terminal cover and a reduction in assembly labor as well as the elimination of the run capacitor wiring harness in the 5SP model.

• Applicable to fractional horsepower compressors used in refrigerators, freezers, water coolers, dehumidifiers, vending machines, and similar refrigeration applications.
• Utilizes ceramic PTC (Positive Temperature Coefficient) pill materials to energize/de-energize motor start windings.
• Readily available for 120 and 220 volt applications.
• Available with 1/8”, 1/4” and 3/16” termination.
• Allows direct mounting of the run capacitor in the 5SP model.
• Provides significant installed cost savings opportunities by requiring fewer components to attach to the compressor, particularly the 5SP which features a run capacitor mount for easy assembly.
• Eliminates run capacitor wiring harness in 5SP models.
• Eliminates terminal cover.

Parameter Name	Parameter Value
Type	motor
Other characteristics	direct
Product applications	for refrigerator compressor motors industry
