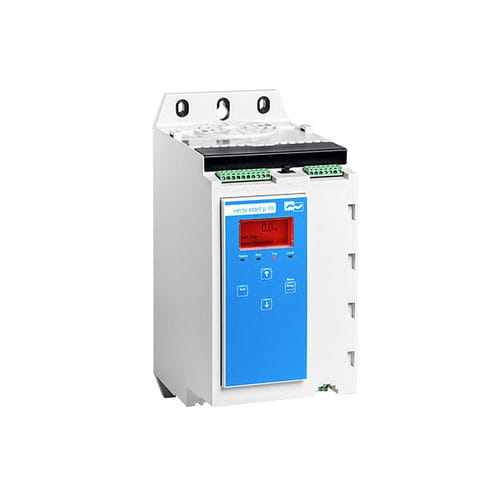

Features Soft Starter
•two-phase controlled dgital-soft starter (11-800kW)
•integrated bypass
•current and torque reduction during acceleration
•USB port
•comprehensive and customizable motor operating performance
•display graphical LCD - real time graphs of motor operating performance
•degree of protection IP20 up to 135A
•motor PTC connection
Functions Soft Starter
•adjustable initial start current level up to 600% of nominal rating
•remote control inputs (2x fixed, 2x programmable)
•relay outputs (3x programmable)
•24VDC output
•analog output
•divers soft start/stop control types
•units with 600V upon request
Options Soft Starter
•Remote Keypad & Cable (29000.2S801)
•DeveiceNet Interface (29000.2S802)
•Ethernet IP Interface (29000.2S803)
•ModBus RTU Interface (29000.2S804)
•ModBus TCP Interface (29000.2S805)
•Profibus Interface (29000.2S806)
•Profinet Interface (29000.2S807)
•Remote Keypad Card (29000.2S808)
•Remote Keypad, Card & Cable (29000.2S809)
•SmartCard Pump Application (29000.2S810)
•Finger protection (from 184A up to 580A, 29000.2S811)
Preferred application areas
•electric pumps
•heat pumps
•vacuum pumps
•ventilators and fans
•travelling cranes
•extraction systems
•compressors
•stirrers
•centrifuges
•saws
•conveyors
•woodworking machines
•grinding machines
•textile machines
•packaging machines
•printing machines
•drives with high load
•others
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
motor
|
| Technology |
electronic
|
| Other characteristics |
two-phase controlled
|
| Current (A) |
24 - 229
|
| Power (W) |
|
